VACUUM HOSE REMOVAL/INSTALLATION [L.H.D. (SKYACTIV-G 2.5)]

id041100801687

Between Intake Manifold and Vacuum Pump

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

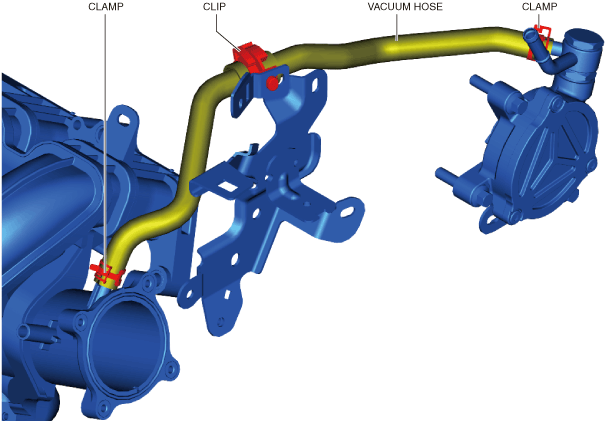

2.  Disconnect the vacuum hose from the clip.

ac8wzw00003697

3.  Pinch open the clamps using pliers and disconnect the vacuum hose.

4.  Install in the reverse order of removal. (See Vacuum hose (between intake manifold and vacuum pump) installation note.)

Vacuum hose (between intake manifold and vacuum pump) installation note

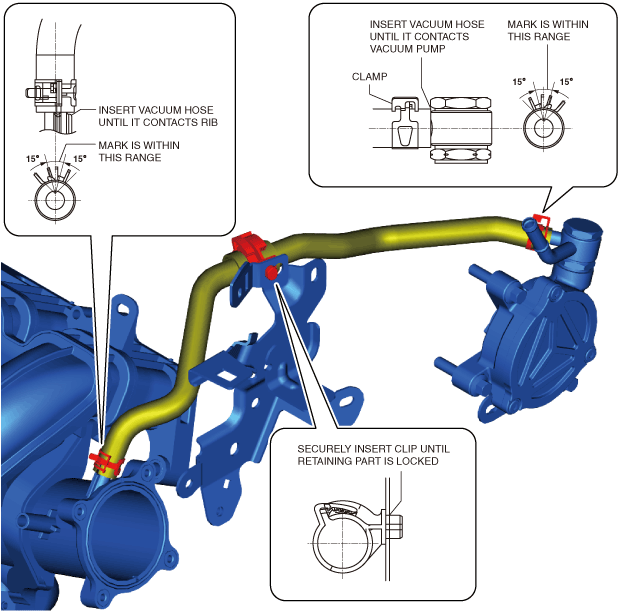

1.  Install the vacuum hose as shown in the figure.

ac8wzw00003698

Between Vacuum Pump and Power Brake Unit

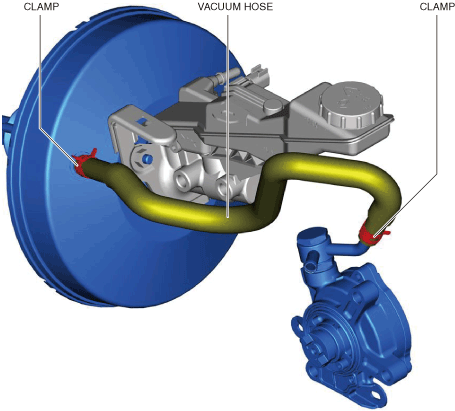

1.  Pinch open the clamps using pliers and disconnect the vacuum hose.

ac8wzw00003699

2.  Install in the reverse order of removal. (See Vacuum hose (between vacuum pump and power brake unit) installation note.)

Vacuum hose (between vacuum pump and power brake unit) installation note

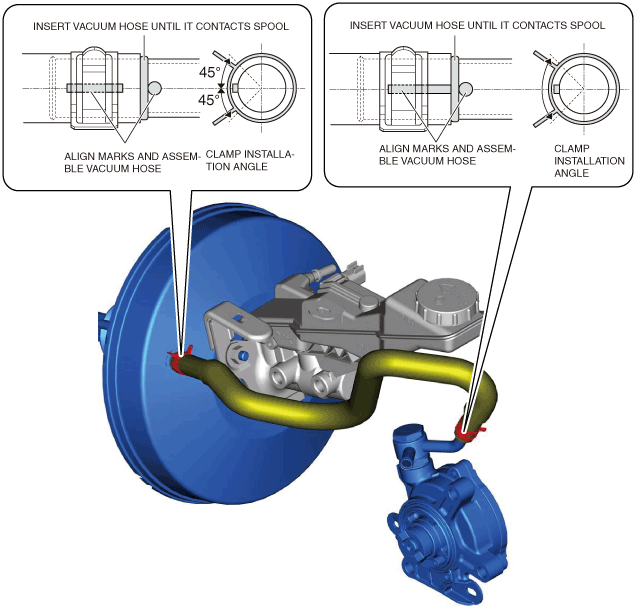

1.  Install the vacuum hose as shown in the figure.

ac8wzw00003700
