VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0411008016s8

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

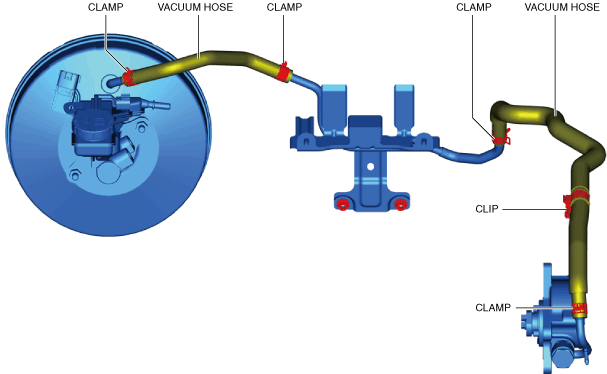

2.  Disconnect the vacuum hose from the clip.

ac5wzw00009810

3.  Pinch the clamp using pliers and remove the vacuum hose.

4.  Install in the reverse order of removal. (See Vacuum Hose Installation Note.)

Vacuum Hose Installation Note

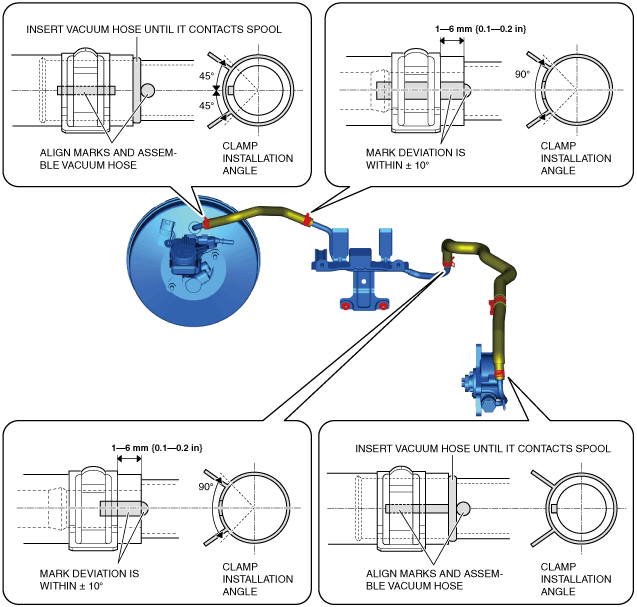

1.  Install the vacuum hose as shown in the figure.

ac5wzw00009811
