•  The AUTOHOLD active indicator light, built into the instrument cluster, notify the driver that the AUTOHOLD is operating.

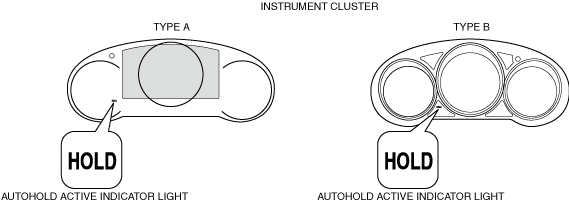

•  The AUTOHOLD active indicator light is built into the instrument cluster.

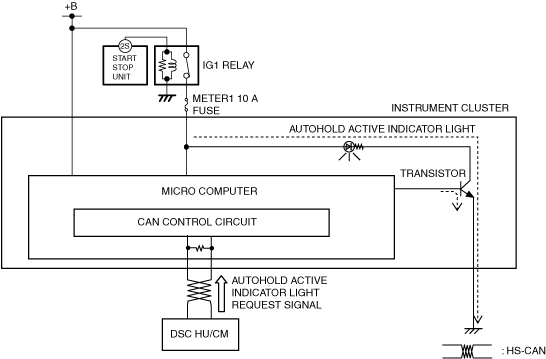

•  When the DSC HU/CM operates the AUTOHOLD, it sends the AUTOHOLD active indicator light request signal. When the instrument cluster receives the AUTOHOLD active indicator light request signal from the DSC HU/CM, the microcomputer turns the transistor on and a ground circuit with the AUTOHOLD active indicator light is established. Therefore, the AUTOHOLD active indicator light illuminates.

•  Function not equipped.
