TCS OFF SWITCH INSPECTION [WITHOUT OFF-ROAD TRACTION ASSIST]

id0415008031f1

Note
•  The TCS OFF switch is integrated into the cluster switch.
•  For the TCS OFF switch removal/installation, refer to the cluster switch removal/installation. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

1.  Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION [WITHOUT OFF-ROAD TRACTION ASSIST].)

2.  Verify that the resistance between the TCS OFF switch terminals D*1/B*2 and E*1/C*2 is as indicated in the table.

•  If not as indicated in the table, replace the TCS OFF switch.

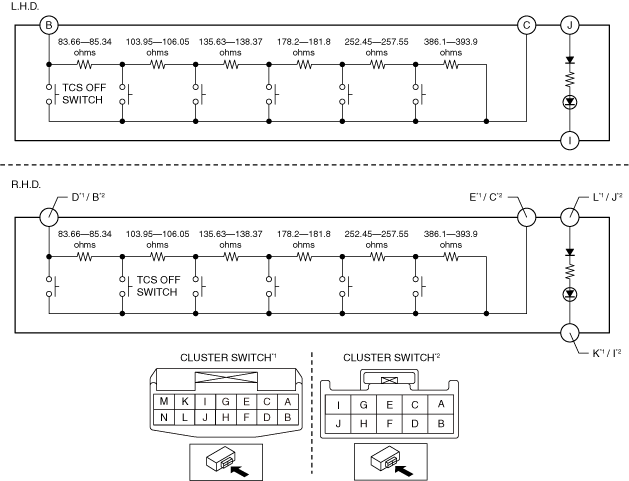

ac8wzw00004263

TCS OFF switch specification

Terminal

Test condition

Resistance (ohms)
D*1/B*2—E*1/C*2
Switch pressed
L.H.D.
0
R.H.D.
83.66—85.34
Switch released
1139.99—1163.01

3.  Apply battery voltage to TCS OFF switch terminal L*1/J*2, and connect terminal K*1/I*2 to ground.

4.  Verify that the LED illuminates.

•  If there is any malfunction, replace the TCS OFF switch.

*1  :VIN serial No. JM0 ******** 100001—200000
*2  :VIN serial No. JM0 ******** 200001— or JM6 ********* 100001— or PP1 ********* 00001—
