TRANSMISSION/TRANSAXLE

id050000100900

Features

Automatic Transaxle [FW6A-EL, FW6AX-EL] [GW6A-EL, GW6AX-EL]

•  A newly developed, FW6A(X)-EL-type and GW6A(X)-EL-type electronically controlled automatic transaxle (SKYACTIV-DRIVE) with 6 forward gears, 1 reverse gear, and a TCC mechanism has been adopted.

•  Using the existing automatic transaxle as a base, fuel economy improvement, direct feel, and smooth shifting have been thoroughly pursued to make one of the most optimized automatic transaxle.

Main features

―  With the adoption of a full range TCC mechanism, a contribution to low fuel consumption and the direct feel of a manual transaxle have been achieved.

―  A control valve body has been adopted with an integrated TCM and improved responsiveness to achieve smooth and precise shifting.

Specifications

Automatic Transaxle [FW6A-EL, FW6AX-EL]

Item			Specifications
			SKYACTIV-G 2.5
Gear ratio		1GR	3.552
		2GR	2.022
		3GR	1.452
		4GR	1.000
		5GR	0.708
		6GR	0.599
		Reverse	3.893
Final gear ratio			4.957
ATF	Type		ATF FZ
	Capacity (Approx. quantity)	(L {US qt, lmp qt})	7.8 {8.2, 6.9}
Torque converter stall torque ratio			1.74
Hydraulic system (Number of drive/driven gear plates)	Low clutch		5/5
	High clutch		5/5
	Low and reverse brake		4/4
	2-6 brake		4/4
	R-3-5 brake		3/3
Front planetary gear (Number of teeth)	Front sun gear		38
	Front pinion gear		29
	Front internal gear		97
Rear planetary gear (Number of teeth)	Rear sun gear		40
	Rear pinion gear		27
	Rear internal gear		95
Reduction planetary gear (Number of teeth)	Reduction sun gear		68
	Reduction pinion gear		21
	Reduction internal gear		109
Primary gear (Number of teeth)			56
Secondary gear (Number of teeth)			59
Output gear (Number of teeth)			17
Ring gear (Number of teeth)			80

Automatic Transaxle [GW6A-EL, GW6AX-EL]

Item			Specifications
			SKYACTIV-D 2.2
Gear ratio		1GR	3.487
		2GR	1.992
		3GR	1.449
		4GR	1.000
		5GR	0.707
		6GR	0.600
		Reverse	3.990
Final gear ratio			4.411
ATF	Type		ATF FZ
	Capacity (Approx. quantity)	(L {US qt, lmp qt})	8.0 {8.5, 7.0}
Torque converter stall torque ratio			1.88
Hydraulic system (Number of drive/driven gear plates)	Low clutch		5/5
	High clutch		5/5
	Low and reverse brake		5/5
	2-6 brake		5/5
	R-3-5 brake		4/4
Front planetary gear (Number of teeth)	Front sun gear		39
	Front pinion gear		29
	Front internal gear		97
Rear planetary gear (Number of teeth)	Rear sun gear		41
	Rear pinion gear		27
	Rear internal gear		95
Reduction planetary gear (Number of teeth)	Reduction sun gear		66
	Reduction pinion gear		22
	Reduction internal gear		109
Primary gear (Number of teeth)			56
Secondary gear (Number of teeth)			59
Output gear (Number of teeth)			16
Ring gear (Number of teeth)			67

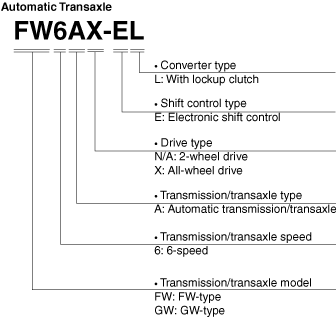

Identification

ac8wzn00001110
