TURBINE/INPUT SHAFT SPEED SENSOR, OUTPUT SHAFT SPEED SENSOR [GW6A-EL, GW6AX-EL]
id0517i2360800
Purpose/Function
• The turbine/input shaft speed sensor detects the rotation speed of the input shaft (low clutch drum).
• The output shaft speed sensor detects the rotation speed of the output shaft (primary gear).
• The turbine/input shaft speed sensor and output shaft speed sensor signals are used in the automatic shift control, manual shift control, TCC control, line pressure control, direct electric shift control, learning control, and on-board diagnostic system.
Construction

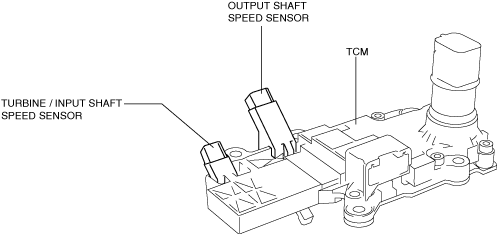

• The turbine/input shaft speed sensor and output shaft speed sensor are both integrated with the TCM and built-into the control valve body.
Operation
• The turbine/input shaft speed sensor changes the output signal according to the rotation speed of the low clutch drum.
• The output shaft speed sensor changes the output signal according to the rotation speed of the primary gear.
