AUTOMATIC TRANSAXLE WARNING INDICATION [GW6A-EL, GW6AX-EL]
id0517i2363500
Purpose/Function
• The automatic transaxle warning indication illuminates when the transaxle has malfunction.
Construction

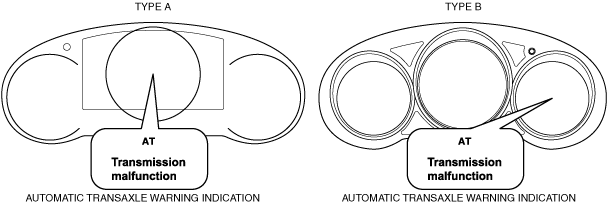

• The automatic transaxle warning indication is displayed on the multi-information display.
Operation

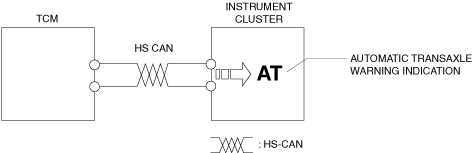

• If the transmission has a malfunction, the TCM sends an automatic transaxle warning indication illumination request signal to the instrument cluster.
