AUTOMATIC TRANSAXLE SHIFT MECHANISM
id051800140200
Outline
• A sport AT-type shift mechanism has been adopted for all models.
• An electric shift-lock system has been adopted to prevent driver mis-operation.
• An emergency manual shift-lock release system has been adopted to ensure emergency bypass if shifting operations cannot be performed.
-
Note
-
• The not P position switch is built into the shift lever component.
• The not P position switch detects the selector lever is not in the P position and transmits a signal to the start stop unit.
Construction

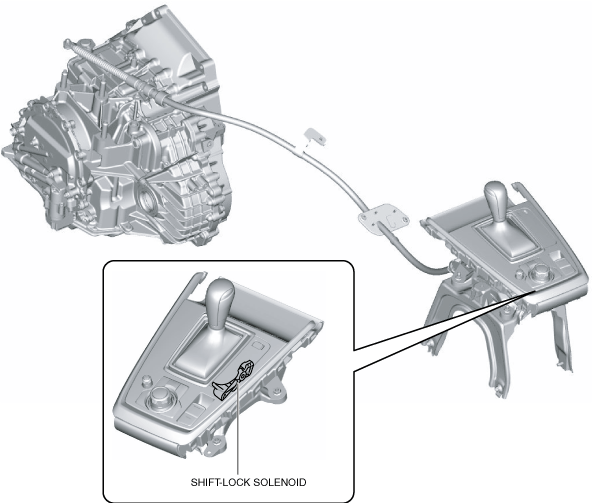

Structural View
