TIE-ROD END INSPECTION

id061300802700

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove the tie-rod end. (See TIE-ROD END REPLACEMENT.)

3.  Inspect the tie-rod end for damage and the boot for cracks.

ac8wzw00001516

•  If there is a malfunction, replace the tie-rod end. (See TIE-ROD END REPLACEMENT.)

4.  Inspect the tie-rod end for excessive play.

•  If there is a malfunction, replace the tie-rod end. (See TIE-ROD END REPLACEMENT.)

5.  Rotate the ball joint of the tie-rod end 5 times.

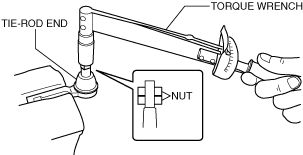

6.  Install 2 nuts to the ball joint and measure the rotation torque of the tie-rod end using a torque wrench.

ac8wzw00001517

•  If not within the standard, replace the tie-rod end. (See TIE-ROD END REPLACEMENT.)
