HEATER SYSTEM
id071100002500
Outline
• The heater system warms the front/rear heater core using the engine coolant warmed while the engine is operating, and warms the air passing through the front/rear heater core.
Function
• The heater system intakes a portion of the warmed engine coolant into the front/rear heater core and circulates it.
Structure/Construction
Structural View

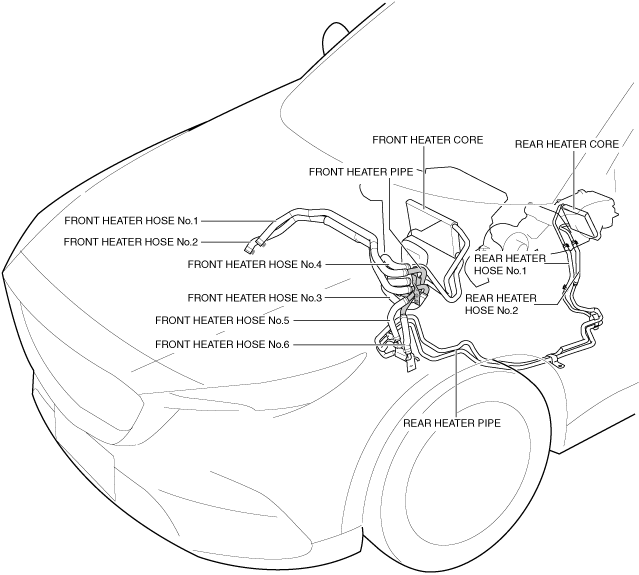

L.H.D. (SKYACTIV-G 2.5)

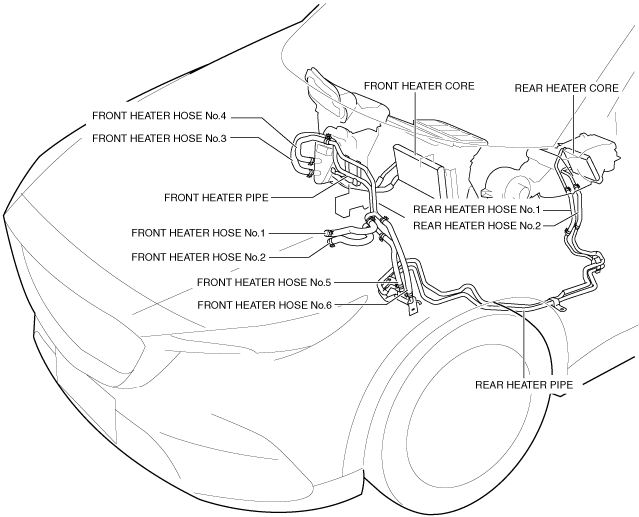

R.H.D. (SKYACTIV-G 2.5)
R.H.D. (SKYACTIV-D 2.2)
Operation

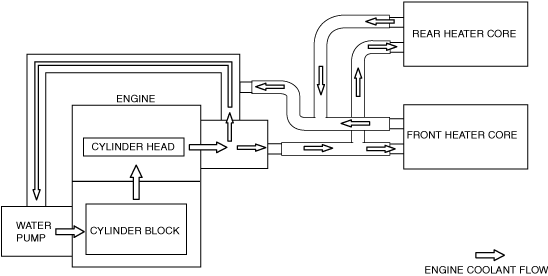

1. Engine coolant flows into the front/rear heater core by the operation of the water pump.
2. When the warmed engine coolant circulates in the front/rear heater core, the front/rear heater core warms up.

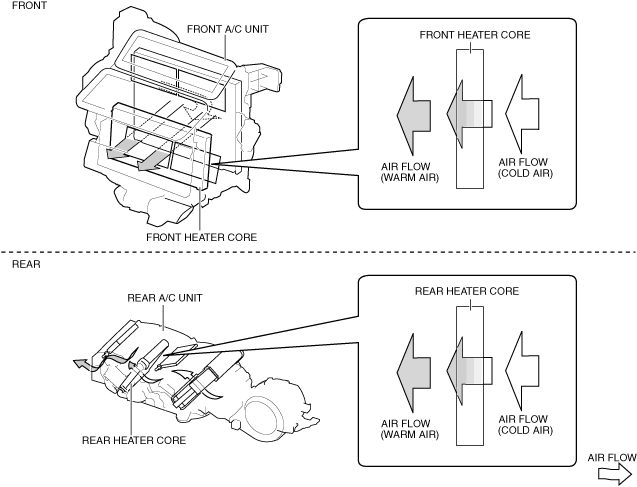

3. The air passing through the warmed front/rear heater core is warmed by heat exchange.
