BLOWER UNIT DISASSEMBLY/ASSEMBLY
id071100800600

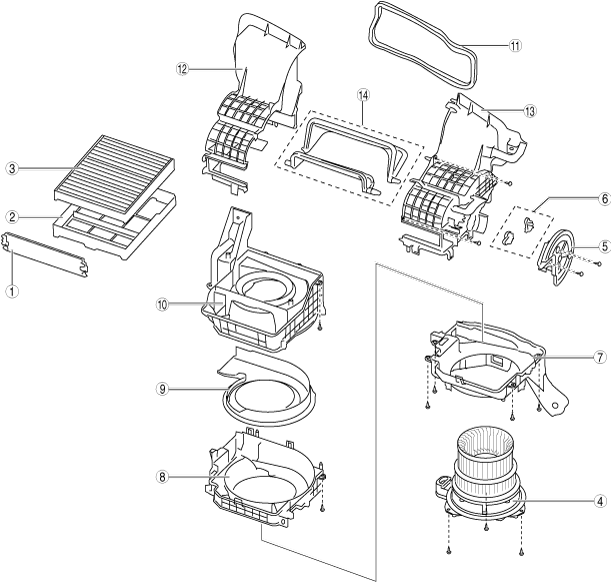

L.H.D.
1. Disassemble in the order indicated in the table.
ac8wzw00003360
|
|
1
|
Cover
|
|
2
|
Air filter case
|
|
3
|
Air filter
|
|
4
|
Front blower motor
|
|
5
|
Air intake actuator
|
|
6
|
Air intake link
|
|
7
|
Blower case F
|
|
8
|
Blower case E
|
|
9
|
Blower case D
|
|
10
|
Blower case C
|
|
11
|
Adhesive polyurethane
|
|
12
|
Blower case B
|
|
13
|
Blower case A
|
|
14
|
Air intake door
|
2. Assemble in the reverse order of disassembly.

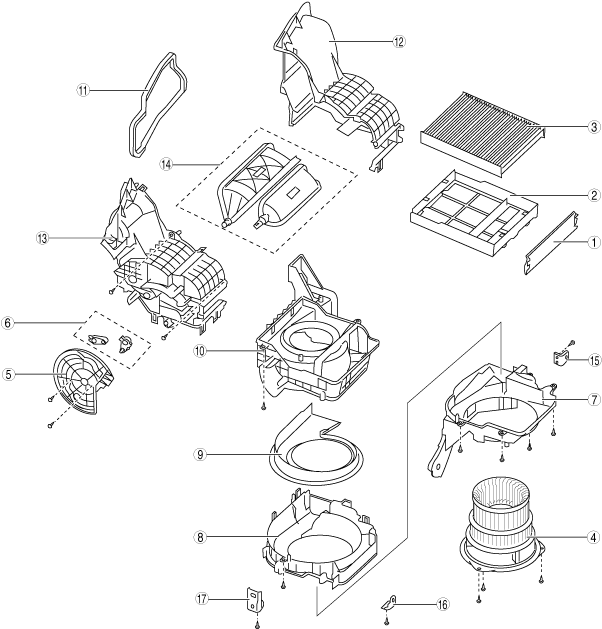

R.H.D.
1. Disassemble in the order indicated in the table.
ac8wzw00000137
|
|
1
|
Cover
|
|
2
|
Air filter case
|
|
3
|
Air filter
|
|
4
|
Front blower motor
|
|
5
|
Air intake actuator
|
|
6
|
Air intake link
|
|
7
|
Blower case F
|
|
8
|
Blower case E
|
|
9
|
Blower case D
|
|
10
|
Blower case C
|
|
11
|
Adhesive polyurethane
|
|
12
|
Blower case B
|
|
13
|
Blower case A
|
|
14
|
Air intake door
|
|
15
|
Bracket A
|
|
16
|
Bracket B
|
|
17
|
Bracket C
|
2. Assemble in the reverse order of disassembly.
