AIR MIX ACTUATOR

id074000004700

Front

Purpose

•  The front air mix actuator opens/closes the air mix door in the front A/C unit to adjust the temperature of the air blown from the air vent.

Function

Door open/close function

•  The door open/close function opens/closes the air mix door in the HOT or COLD direction based on the motor drive of the front air mix actuator.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the front air mix actuator motor drive.

Structure/Construction

•  A potentiometer-type front air mix actuator has been adopted.

•  The driver-side front air mix actuator is located on the driver’s side of the front A/C unit.

•  The passenger-side front air mix actuator is located on the passenger’s side of the front A/C unit.

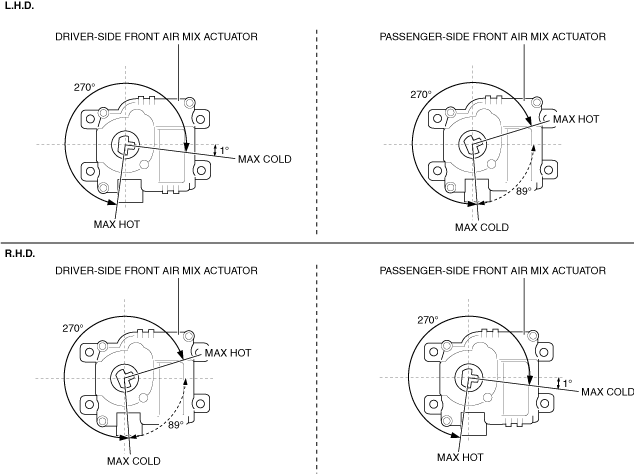

•  The operation range of the front air mix actuator is as indicated in the diagram.

ac9wzn00001129

Operation

•  For the front air mix actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)

Fail-safe

•  Not applicable

Rear

Purpose

•  The rear air mix actuator opens/closes the air mix door in the rear A/C unit to adjust the temperature of the air blown from the air vent.

Function

Door open/close function

•  The door open/close function opens/closes the air mix door in the HOT or COLD direction based on the motor drive of the rear air mix actuator.

Door position detection function

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the rear air mix actuator motor drive.

Structure/Construction

•  A potentiometer-type rear air mix actuator has been adopted.

•  The rear air mix actuator is located on the rear A/C unit.

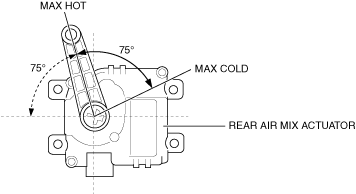

•  The operation range of the rear air mix actuator is as indicated in the diagram.

ac9wzn00001130

Operation

•  For the rear air mix actuator operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM]. (See FULL-AUTO AIR CONDITIONER SYSTEM.)

Fail-safe

•  Not applicable
