SEAT BELT

id081100500100


Outline

•  Three-point front seat belts with the following functions for front seat passengers have been adopted.
―  Front pre-tensioner seat belt (See FRONT PRE-TENSIONER SEAT BELT [STANDARD DEPLOYMENT CONTROL SYSTEM].)(See FRONT PRE-TENSIONER SEAT BELT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
―  ELR (Emergency Locking Retractor: emergency locking mechanism)
―  Load limiter
•  Three-point second-row seat belts with the following functions for second-row passengers (left and right seats) adopted.
―  Rear pre-tensioner seat belt (See REAR PRE-TENSIONER SEAT BELT [STANDARD DEPLOYMENT CONTROL SYSTEM].)(See REAR PRE-TENSIONER SEAT BELT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
―  ALR
―  ELR
―  Load limiter
•  Three-point second-row seat belt with the following functions for second-row passenger (center seat) adopted.
―  ELR
•  Three-point third-row seat belts with the following function for third-row passenger adopted.
―  ELR

Function

•  The seat belts are belt type safety devices which restrain the occupants in their seats.
•  The seat belt prevents the driver and the passenger from being thrown from the seat and injured due to an emergency vehicle stop or impact by being hit.
•  The specifications for each seat belt are as indicated in the table.

Seat belt

Type

Function
Front seat belt (Driver-side, passenger-side)
Three-point
•  Front pre-tensioner seat belt
•  ELR
•  Load limiter
Second-row seat belt (LH/RH)
Three-point
•  Rear pre-tensioner seat belt
•  ALR
•  ELR
•  Load limiter
Second-row seat belt (center)
Three-point
•  ELR
Third-row seat belt
Three-point
•  ELR


Structure/Construction/Operation

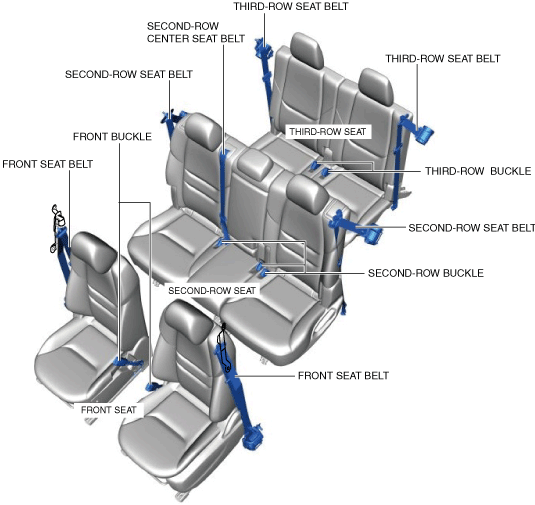

Structural view (R.H.D.)

ac8wzn00000080

Structural view (L.H.D.)

ac8ccn00000174

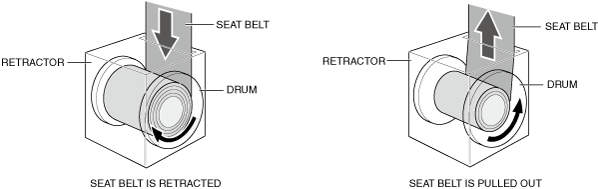

•  For the three-point seat belt, the seat belt is secured to the drum in the retractor and wrapped.
•  The seat belt is pulled out or retrieved by the rotation of the drum to adjust the length of the seat belt.
ac8wzn00000081

ELR (Emergency Locking Retractor)

•  If a sudden force is applied to a seat belt by an occupant moving forward by inertia force due to a vehicle collision or sudden braking, the locking base in the retractor is locked to prevent (lock) the seat belt from being pulled out.

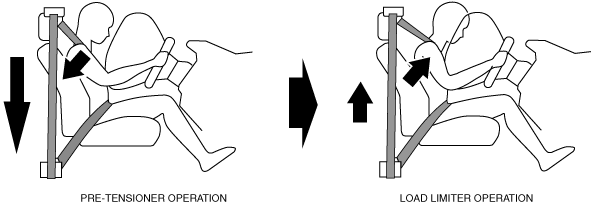

Load limiter

•  When a certain amount of force is applied to the seat belt by an occupant moving forward by inertia force after the pre-tensioner seat belt operates, the locking base in the retractor is unlocked, the seat belt pulls out to mediate the pressure of the seat belt against the occupant.

(R.H.D.)

ac8wzn00000082

(L.H.D.)

ac8ccn00000175


ALR (Automatic Locking Retractor)

•  When the seat belt is pulled out and fastened, the ALR locks the seat belt at that length and it cannot be pulled out any more.
•  The ALR is mainly used for installing a child-restraint.


Front pre-tensioner seat belt

•  Refer to [FRONT PRE-TENSIONER SEAT BELT]. (See FRONT PRE-TENSIONER SEAT BELT [STANDARD DEPLOYMENT CONTROL SYSTEM].)(See FRONT PRE-TENSIONER SEAT BELT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)


Rear pre-tensioner seat belt

•  Refer to [REAR PRE-TENSIONER SEAT BELT]. (See REAR PRE-TENSIONER SEAT BELT [STANDARD DEPLOYMENT CONTROL SYSTEM].)(See REAR PRE-TENSIONER SEAT BELT [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)


Fail-safe

•  Not applicable
