SYSTEM WIRING DIAGRAM [SEAT WARMER SYSTEM]


id0903m2970200


System wiring diagram


Front (type A)

ac8wzn00001010


Front (type B)

With seat ventilation system

ac8wzn00000984

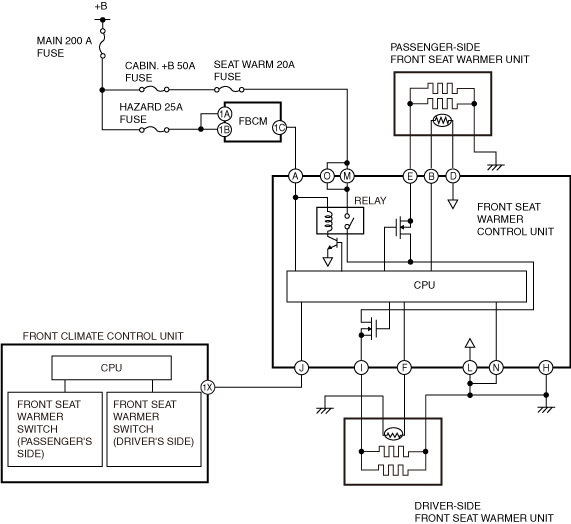

Without seat ventilation system

ac8wzw00004273


Rear

ac8wzn00000637
