SEAL BOARD UPPER REMOVAL/INSTALLATION

id091000466600

1.  Remove the fasteners.

ac8wzw00000844

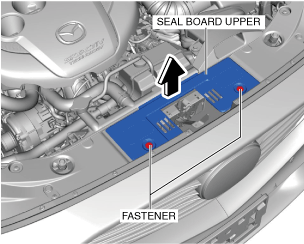

2.  Move the seal board upper in the direction of the arrow shown in the figure and remove it.

3.  Install in the reverse order of removal.
