FUEL-FILLER LID ADJUSTMENT

id091000800200

1. Measure the gap and height difference between the fuel-filler lid and the body.

2. Loosen the bolts, move the fuel-filler lid, and adjust it. (See FUEL-FILLER LID REMOVAL/INSTALLATION.)

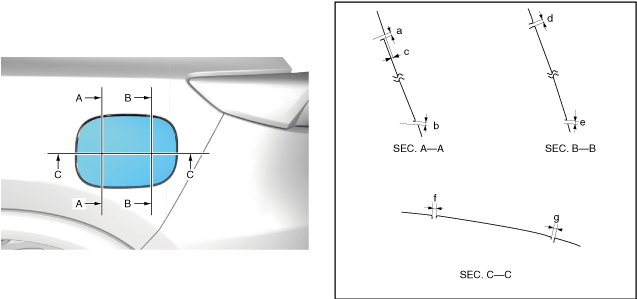

ac8wzw00000997

Standard clearance

a: 1.58—3.58 mm {0.063—0.140 in}

b: 1.09—3.09 mm {0.043—0.121 in}

c: -0.5—1.5 mm {-0.01—0.05 in}

d: 1.53—3.53 mm {0.061—0.138 in}

e: 1.19—3.19 mm {0.047—0.125 in}

f: 1.57—3.57 mm {0.062—0.140 in}

g: 1.59—3.59 mm {0.063—0.141 in}
