FRONT OVER FENDER REMOVAL/INSTALLATION

id091000878700

1.  Remove the fastener.

ac8wzw00000882

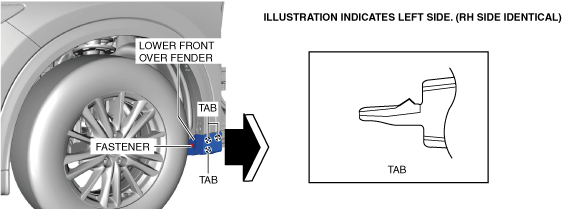

2.  Pull the lower front over fender in the direction of the arrow shown in the figure and remove it while detaching the tabs.

3.  Remove the fastener.

ac8wzw00000883

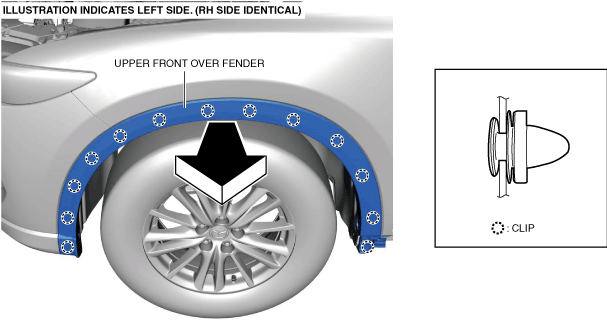

4.  Pull the upper front over fender in the direction of the arrow shown in the figure and remove the clips starting from the vehicle front.

ac8wzw00000884

5.  Install in the reverse order of removal.

Warning

•  When installing the front over fender, verify that the clips are not damaged, if they are damaged, replace them with new ones. Otherwise, the front over fender may fall off while the vehicle is being driven, leading to a serious accident.
