REAR OVER FENDER REMOVAL/INSTALLATION

id091000878800

1.  Remove the fastener.

ac8wzw00001021

2.  Remove the fastener.

ac8wzw00001022

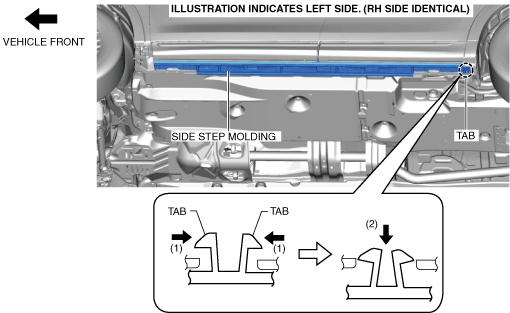

3.  Move the tabs in the order of arrows (1) and (2) shown in the figure and detach the tabs from the rear over fender.

ac8wzw00001023

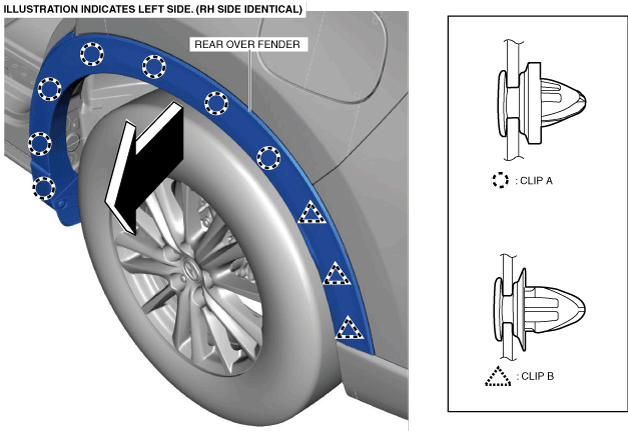

4.  Move the rear over fender in the direction of the arrow shown in the figure and detach clips A from the body panel.

ac8wzw00001024

5.  Move the rear over fender in the direction of the arrow shown in the figure and detach clips B from the rear bumper.

6.  Remove the rear over fender.

7.  Install in the reverse order of removal.

Warning

•  When installing the rear over fender, verify that the clips are not damaged, if they are damaged, replace them with new ones. Otherwise, the rear over fender may fall off while the vehicle is being driven, leading to a serious accident.
