POWER LIFTGATE (PLG) FRONT SWITCH


id091100011000


Purpose

•  Transmits the power liftgate (PLG) front switch operation of the user to the power liftgate (PLG) control module.

Functions

•  The power liftgate (PLG) front switch sends a switch on signal to the power liftgate (PLG) control module.

Structure/Construction/Operation

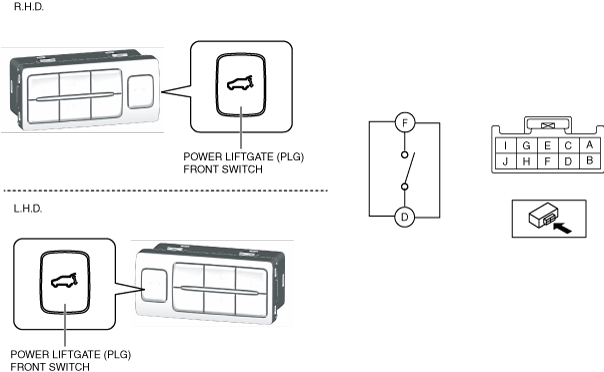

•  The power liftgate (PLG) front switch is built into the cluster switch.
•  While the power liftgate (PLG) front switch is pressed, the switch turns on (contact point: closed).
ac8wzw00003291

Fail-safe

•  Not applicable
