POWER LIFTGATE (PLG) REAR SWITCH


id091100011100


Purpose

•  Transmits the power liftgate (PLG) rear switch operation of the user to the power liftgate (PLG) control module.

Functions

•  The power liftgate (PLG) rear switch sends a switch on signal to the power liftgate (PLG) control module.

Structure/Construction/Operation

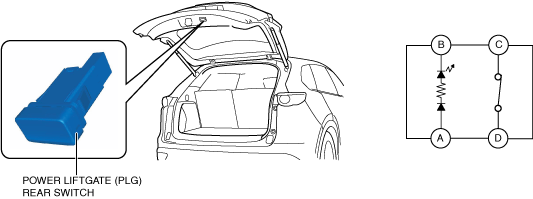

•  The power liftgate (PLG) rear switch is located on the liftgate.
•  While the power liftgate (PLG) rear switch is pressed, the switch turns on (contact point: closed).
ac5wzn00003932

Fail-safe

•  Not applicable
