GLASS/WINDOWS/MIRRORS


id091200012000


Outline

•  A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window subswitches.
•  A power outer mirror system has been adopted with which the outer mirrors can be operated remotely using the power outer mirror switch.
•  Outer mirror automatic folding has been adopted which retracts/returns the power outer mirrors in conjunction with the locking/unlocking of the doors. (With outer mirror automatic folding)
•  A rear window defogger has been adopted with which rear window glass fogging can be cleared by pressing the rear window defogger switch.
•  Heated outer mirrors have been adopted which are can remove fogging on the surface of the outer mirrors in conjunction with the rear window defogger. (With heated outer mirrors)
•  An auto-dimming rearview mirror has been adopted which prevents the driver from being dazzled by light from vehicles at the rear for assured safety while driving at night. (With auto-dimming rearview mirror)

Glass/window/mirror specification


UV protection glass
Dark glass
Windshield
Front door glass
×*
Rear door glass
×*
×*
Rear door quarter glass
×*
×*
Quarter window glass
×*
×*
Rear window glass
×*
×*

*  :Availability depends on vehicle specification.

Structural View

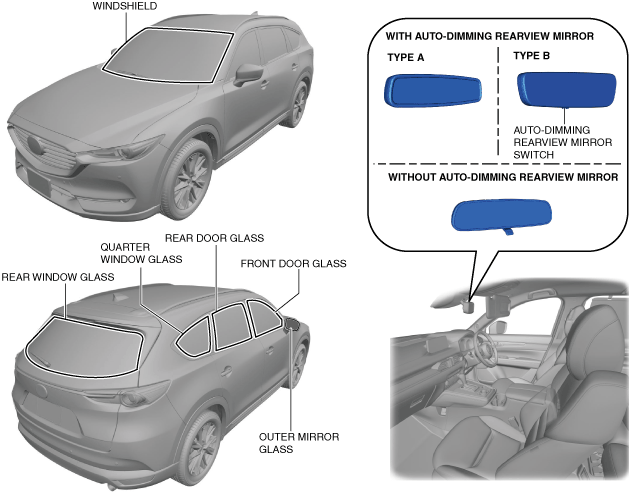

Glass/window/mirror

ac8wzn00000375

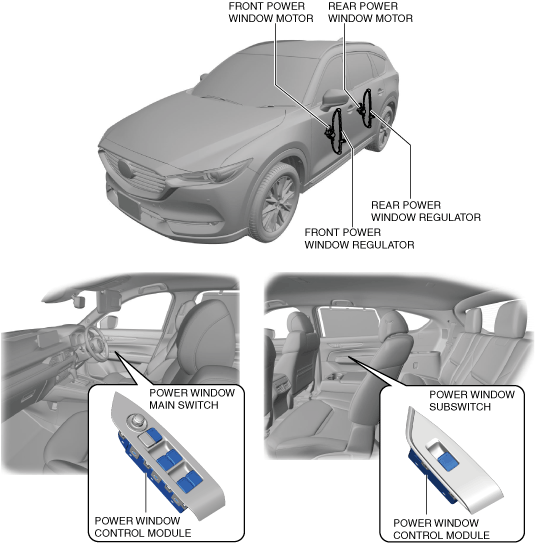

Power window system

ac8wzn00000376


Power outer mirror system

ac8wzn00000377

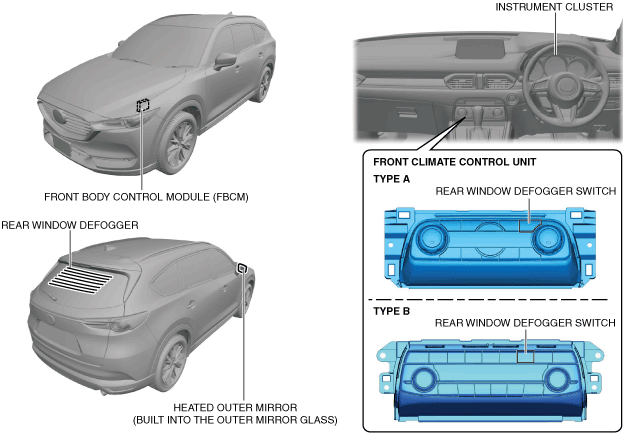

Rear window defogger/heated outer mirror

ac8wzn00000378
