POWER WINDOW SYSTEM

id091200012200

Outline

Function

Manual open/manual close function

•  When the power window main switch or subswitch is operated for manual operation, the front door glass/rear door glass performs manual open/manual close operation.

Auto open/auto close function

•  When the power window main switch is operated for auto operation, all door glass perform auto open/auto close operation.

•  When the power window subswitch is operated for auto operation, the passenger's side front door glass/rear door glass performs auto open/auto close operation.

IG OFF timer function

•  The driver's side power window can be operated using the power window main switch for approx. 40 s after the ignition is switched from ON (engine on or off) to ACC or OFF.

Auto reverse pinch protection function

•  If an obstruction by a foreign object is detected during the auto close operation, the operation changes from close to open.

Fully-closed position record function

•  The power window control module records the fully-closed position of the front door glass so that the auto reverse pinch protection function does not operate when the front door glass is fully closed.

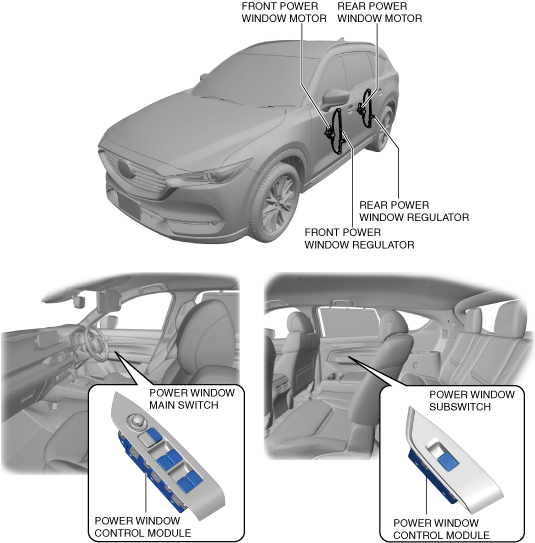

Structural View

ac8wzn00000379

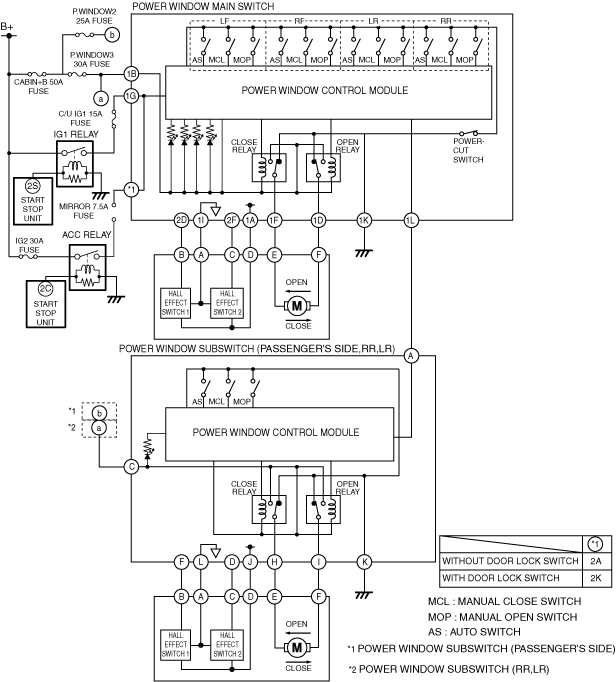

System Wiring Diagram

ac8wzn00000940

Operation

Operation of driver's side manual open/close function (Example: manual close operation)

1.  When the power window main switch is operated for manual close operation, the manual close switch is switched (1).

2.  When the power window control module detects a manual close signal, current flows to the close relay (2) and the close relay turns on (3).

3.  When the close relay turns on, the power window motor (driver's side) performs close operation (4).

ac8wzn00000381

Operation of auto open/close function (Example: auto open operation)

1.  When the power window main switch is operated for auto open operation, the auto switch and the manual open switch are switched (1).

2.  When the power window control module detects an auto open signal, current flows to the open relay (2) and the open relay turns on (3).

3.  When the open relay turns on, the power window motor (driver's side) performs auto open operation (4).

ac8wzn00000382

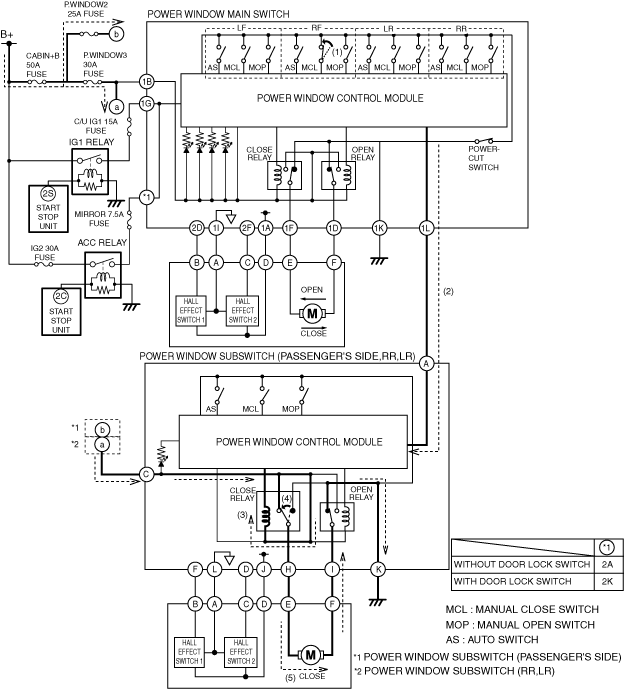

Operation of front passenger's side and rear manual open/close function from driver's side (Example: front passenger's side close operation)

1.  When the passenger's side switch is operated for manual close operation by the power window main switch, the manual close switch is switched (1).

2.  When the power window control module on the power window subswitch side detects a manual close signal (2), current flows to the close relay (3) and the close relay turns on (4).

3.  When the close relay turns on, the power window motor (driver's side) performs a close operation (5).

ac8wzn00000383

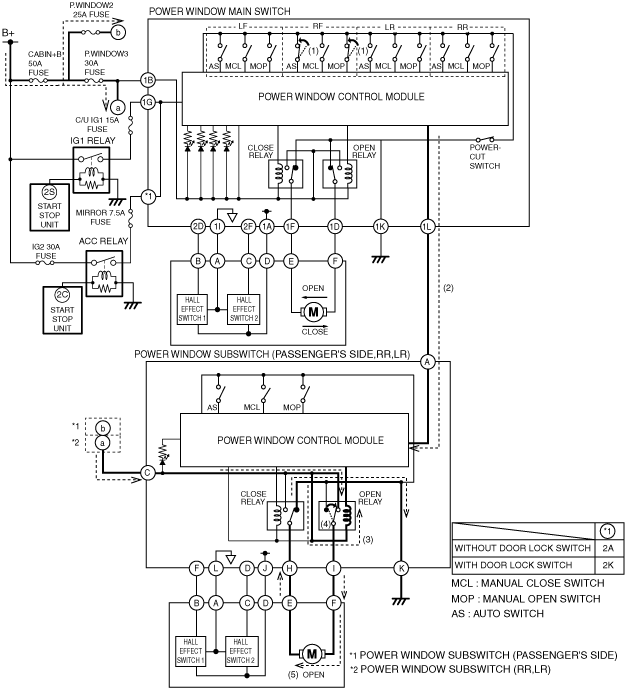

Operation of front passenger's side and rear auto open/close function from driver's side (Example: front passenger's auto open operation)

1.  When the passenger's side switch is operated for auto open operation by the power window main switch, the auto switch and the manual open switch are switched (1).

2.  When the power window control module on the power window subswitch side detects an auto open signal (2), current flows to the open relay (3) and the open relay turns on (4).

3.  When the open relays turn on, the power window motor (driver's side) performs auto open operation (5).

ac8wzn00000384

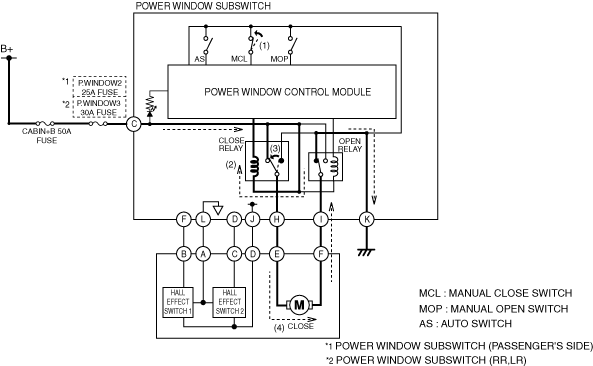

Operation of front passenger's side and rear open/close function (Example: manual close operation)

1.  When the power window subswitch is operated for manual close operation, the manual close switch is switched (1).

2.  When the power window control module detects a manual close signal, current flows to the close relay (2) and the close relay turns on (3).

3.  When the close relay turns on, the power window motor performs close operation (4).

ac8wzn00000385

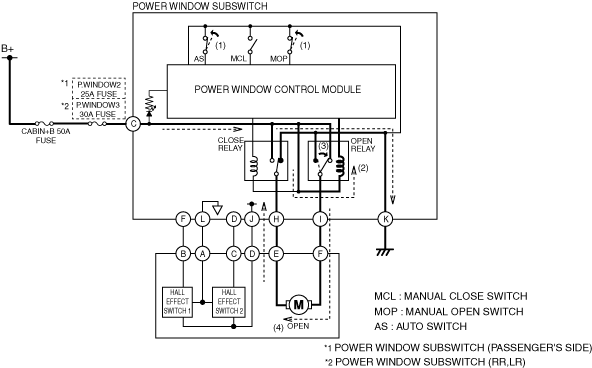

Operation of front passenger's side and rear auto open/close function (Example: auto open operation)

1.  When the power window subswitch is operated for auto open operation, the auto switch and the manual open switch are switched (1).

2.  When the power window control module detects an auto open signal, current flows to the open relay (2) and the open relay turns on (3).

3.  When the open relay turns on, the power window motor performs auto open operation (4).

ac8wzn00000386

Operation of auto reverse pinch protection function

•  If the power window control module detects a change in the pulse signal from the power window motor for 0.3 s during auto close operation, it reverses the power window motor operation and opens the door glass approx. 200 mm {7.87 in}.

Fully-closed position record function

•  When the ignition is switched ON (engine off or on), and the switch is pulled and held for approx. 2 s after the door glass is fully closed from the fully opened position, the power window control module records the door glass position.

Note

•  Performing the following procedures will reset the initial setting and disables auto operation. Re-perform the initial setting.

―  Negative battery terminal is disconnected

―  Power window main switch connector is disconnected

―  Power window system power supply fuse is removed

Fail-safe
