POWER OUTER MIRROR SYSTEM

id091200013500

Outline

Function

Outer mirror glass adjustment function

•  Outer mirror glass can be adjusted up/down and left/right electrically by operating the power outer mirror switch.

Automatic retract/return function

•  When the power outer mirror control module detects door lock/unlock, it retracts/returns the power outer mirrors.

IG OFF timer function

•  Adjustment and retract/return of the outer mirror glass can be performed by operating the power outer mirror switch for approx. 40 s after switching the ignition from ON (engine off or on) to off.

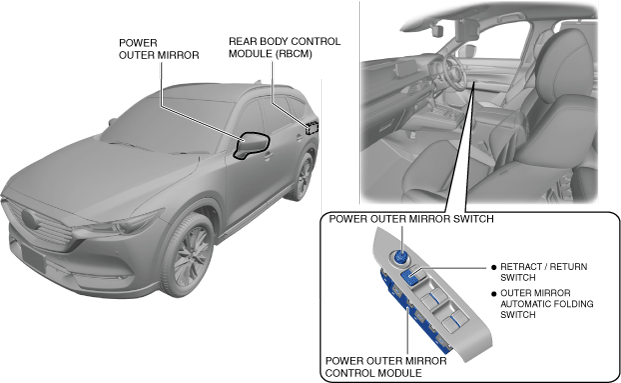

Structural View

ac8wzn00000396

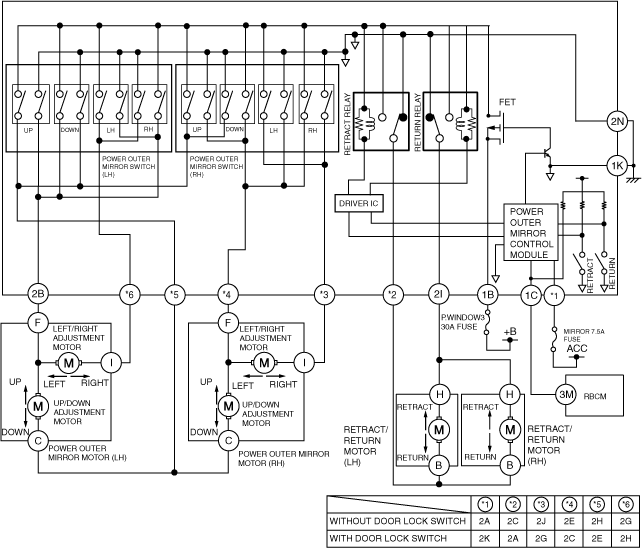

System Wiring Diagram

ac8wzn00000397

Operation

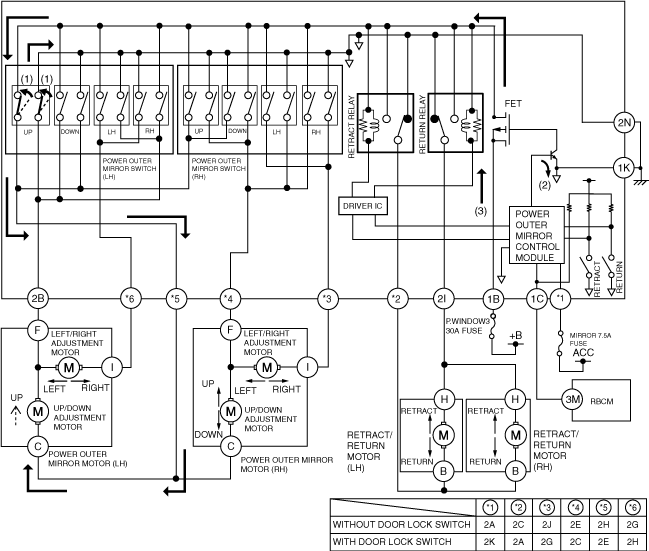

Mirror glass adjustment (Example: Left outer mirror is adjusted upward)

1.  When the upward switch is turned on (1), current from the power outer mirror control module to the transistor flows and the transistor turns on.

2.  The FET turns on when the transistor turns on and current flows (2).

3.  With current flowing, the up/down adjustment motor moves in the upward direction (3).

ac8wzn00000398

Outer mirror glass retract/return operation (Example: retracting outer mirrors)

1.  When the retract side of the retract/return switch is turned on (1), the power outer mirror control module turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the retract relay coil and the retract relay turns on (5).

4.  When the retract relay turns on, the retract/return motor operates (6) in the retract direction and the outer mirrors retract.

ac8wzn00000399

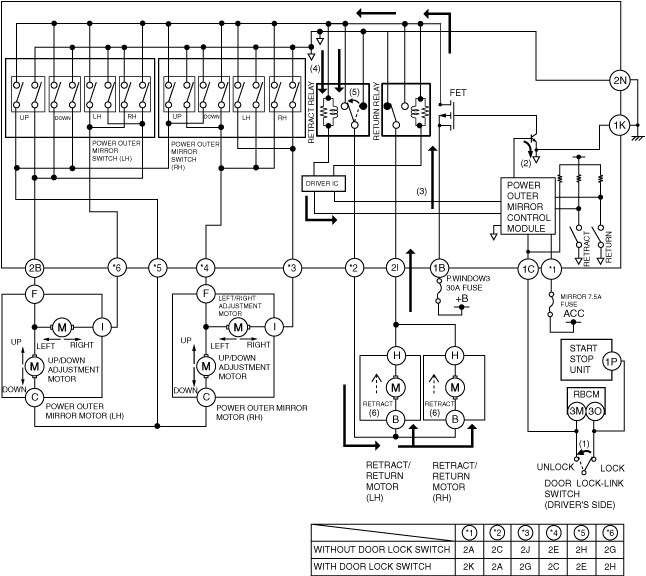

Power outer mirror retract operation (With outer mirror automatic folding) (Example: Retracting power outer mirrors automatically)

Operation condition

•  The power outer mirrors retract when the driver's door is locked with all of the following conditions met.

―  Outer mirror automatic folding switch is in AUTO position

―  Ignition switched OFF

―  Driver's door is unlocked

1.  When the power outer mirror control module detects (1) a lock signal, it turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the retract relay coil and the retract relay turns on (5).

4.  When the retract relay turns on, the retract/return motor operates (6) in the retract direction and the power outer mirrors retract.

ac8wzn00000400

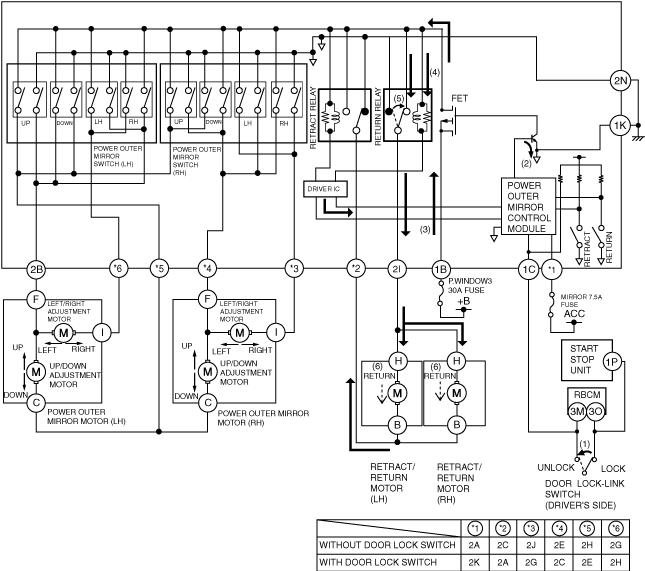

Power outer mirror return operation (With outer mirror automatic folding) (Example: Returning power outer mirrors automatically)

Operation condition

•  The power outer mirrors return when the driver's door is unlocked or the ignition is switched ON (engine off or on) with all of the following conditions met.

―  Outer mirror automatic folding switch is in AUTO position

―  Ignition switched OFF

―  Driver's door is locked

1.  When the power outer mirror control module detects (1) an unlock signal or the ignition switched ON (engine off or on), it turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, current flows (4) to the return relay coil and the return relay turns on (5).

4.  When the return relay turns on, the retract/return motor operates (6) in the return direction and the power outer mirrors return.

ac8wzn00000401

IG OFF timer operation

•  When the ignition is switched from ON (engine off or on) to OFF, the IG OFF timer function inside the power outer mirror control module is turned on and the power outer mirror switch can be operated for approx. 40 s after IG OFF is detected.
