SENSOR COVER REMOVAL/INSTALLATION

id091200025000

Note

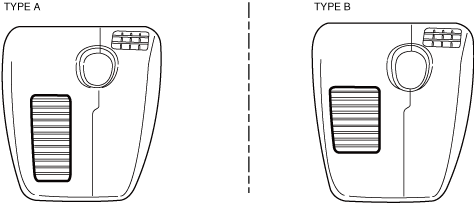

•  There are two types of the sensor cover. Verify the sensor cover shape before performing the procedures.

ac8wzw00003297

Type A

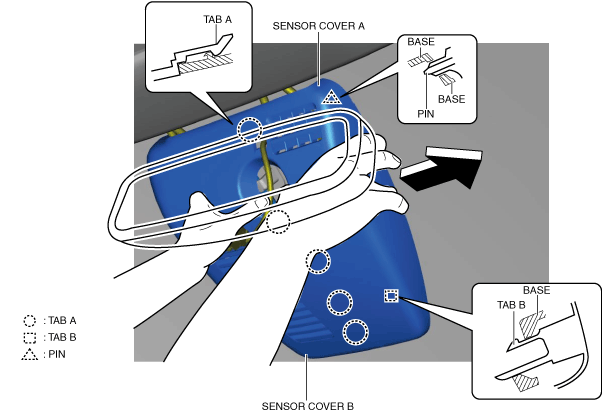

1.  Pull sensor cover A in the direction of the arrow shown in the figure and detach tabs A from sensor cover B.

ac8wzw00003170

2.  Pull sensor cover A in the direction of the arrow shown in the figure and detach tab B and the pin from the base.

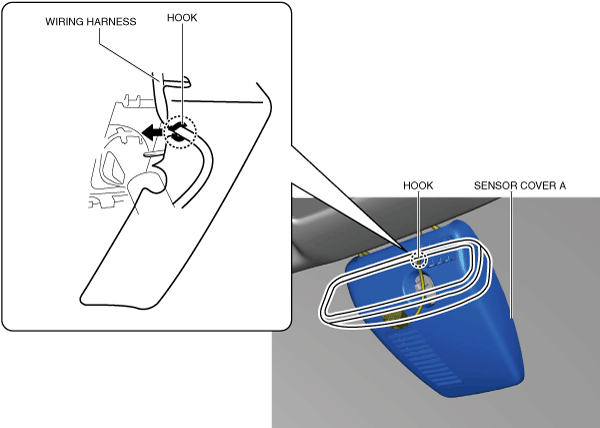

3.  Remove the wiring harness from the hook. (With auto-dimming rearview mirror)

ac8wzw00003171

4.  Remove sensor cover A.

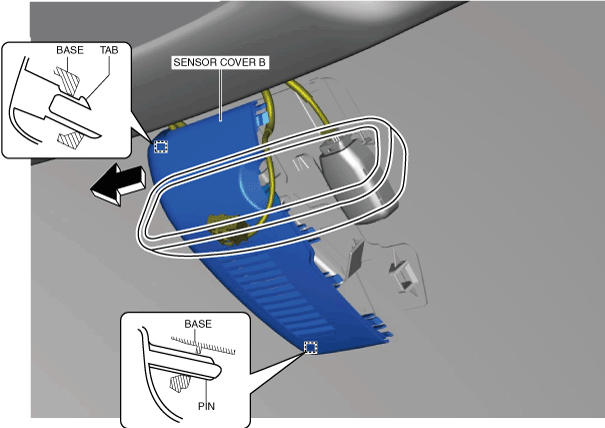

5.  Pull sensor cover B in the direction of the arrow shown in the figure and detach the tabs and pins from the base.

ac8wzw00000945

6.  Remove sensor cover B.

7.  Install in the reverse order of removal.

Type B

1.  Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and pin, and remove sensor cover A from the base.

ac8wzw00003298

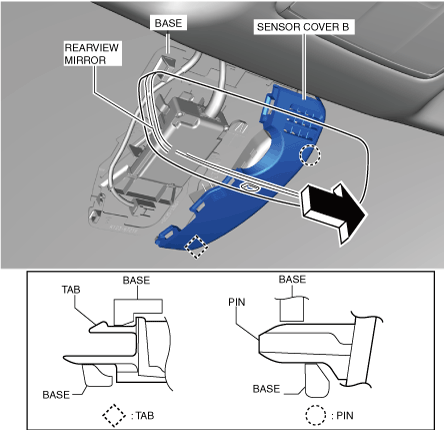

2.  Pull sensor cover B in the direction of the arrow shown in the figure, detach the pin and tab, and remove sensor cover B from the base.

ac8wzw00003299

3.  Install in the reverse order of removal.
