ON-BOARD DIAGNOSIS SYSTEM [REAR ONE-TOUCH WALK-IN CONTROL MODULE]

id091300408700

Outline

Function

•  The on-board diagnostic function consists of the following functions:

―  A malfunction detection function, which detects overall malfunctions in the rear one-touch walk-in control module-related parts.

―  A memory function, which stores detected DTCs.

―  A display function, which indicates malfunction locations and status via DTC output.

―  A PID/data monitor function, which reads out specific input/output signals and verifies the input/output condition.

•  Using the Mazda Modular Diagnostic System (M-MDS), DTCs can be read out and deleted, and the PID/data monitor function can be activated.

Malfunction detection function

DTC table

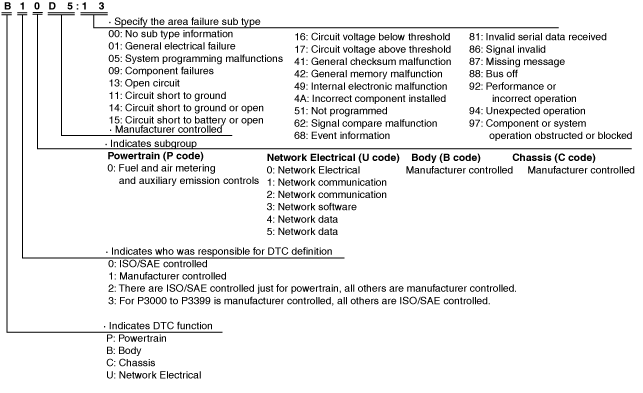

DTC 7-digit code definition

•  When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.

am6zzn00002847

Status byte for DTC

•  The status byte is the two digits (two digits after hyphen (-)) after the 7-digit DTC.

am6zzn00002848

•  The status byte is a code which indicates the pending code, current/past malfunction status, or warning illumination status.

•  The status byte can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).

•  For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.

Detection condition for the applicable DTC

DTC No.	System malfunction location	Detection condition
B103E:12	Walk-in actuator (RH) circuit malfunction	•  Rear one-touch walk-in control module detects a short to power supply in the walk-in actuator (RH) circuit.
B103E:13	Walk-in actuator (RH) circuit malfunction	•  Rear one-touch walk-in control module detects an open circuit or short to ground in the walk-in actuator (RH) circuit.
B10A7:24	Walk-in switch (RH) circuit malfunction	•  Rear one-touch walk-in control module detects the walk-in switch (RH) is stuck on.
B10E7:11	IG1 relay circuit malfunction	•  Rear one-touch walk-in control module detects a short to ground in the IG1 relay circuit.
B10E7:12	IG1 relay circuit malfunction	•  Rear one-touch walk-in control module detects a short to power supply in the IG1 relay circuit.
B10E7:16	IG1 power supply voltage malfunction	•  The rear one-touch walk-in control module detects that the IG1 power supply voltage is a certain value or less.
B10E7:17	IG1 power supply voltage malfunction	•  The rear one-touch walk-in control module detects that the IG1 power supply voltage is a certain value or more.
B11D9:16	Rear one-touch walk-in control module B+ (POWER) power supply voltage malfunction	•  The rear one-touch walk-in control module detects that the battery power supply voltage is a certain value or less.
B11D9:17	Rear one-touch walk-in control module B+ (POWER) power supply voltage malfunction	•  The rear one-touch walk-in control module detects that the battery power supply voltage is a certain value or more.
B131C:12	Walk-in actuator (LH) circuit malfunction	•  Rear one-touch walk-in control module detects a short to power supply in the walk-in actuator (LH) circuit.
B131C:13	Walk-in actuator (LH) circuit malfunction	•  Rear one-touch walk-in control module detects an open circuit or short to ground in the walk-in actuator (LH) circuit.
B139D:24	Walk-in switch (LH) circuit malfunction	•  Rear one-touch walk-in control module detects the walk-in switch (LH) is stuck on.
U0001:88	Module communication error (HS-CAN)	•  Rear one-touch walk-in control module detects the CAN bus communication line (HS-CAN) malfunction with the ignition switched ON (engine off or on).
U0100:00	Communication error with PCM	•  Rear one-touch walk-in control module could not receive the CAN signal from the PCM for 5 s or more with the ignition switched ON (engine off or on).
U0155:00	Communication error with instrument cluster	•  Rear one-touch walk-in control module could not receive the CAN signal from the instrument cluster for 5 s or more with the ignition switched ON (engine off or on).
U0214:00	Communication error with start stop unit	•  Rear one-touch walk-in control module could not receive the CAN signal from the start stop unit for 5 s or more with the ignition switched ON (engine off or on).
U0447:86	Error signal received from instrument cluster	•  Rear one-touch walk-in control module receives the error signal from the instrument cluster.
U3000:01	Rear one-touch walk-in control module internal malfunction	•  When any of the following conditions is met: ―  Rear one-touch walk-in control module is affected by electromagnetic field noise. ―  Rear one-touch walk-in control module detected internal circuit malfunction. Note •  This DTC has been set to prevent the one-touch walk-in control module from operating incorrectly due to electromagnetic field noise.
U3000:0A	Rear one-touch walk-in control module internal malfunction	•  When any of the following conditions is met: ―  Rear one-touch walk-in control module is affected by electromagnetic field noise. ―  Rear one-touch walk-in control module detected internal circuit malfunction. Note •  This DTC has been set to prevent the one-touch walk-in control module from operating incorrectly due to electromagnetic field noise.
U3000:44	Rear one-touch walk-in control module internal malfunction	•  Rear one-touch walk-in control module detected internal malfunction.
U3000:96	Rear one-touch walk-in control module internal malfunction	•  Rear one-touch walk-in control module detected internal malfunction.
U3003:16	Rear one-touch walk-in control module B+ (ROOM) power supply voltage malfunction	•  The rear one-touch walk-in control module detects that the battery power supply voltage is a certain value or less.
U3003:17	Rear one-touch walk-in control module B+ (ROOM) power supply voltage malfunction	•  The rear one-touch walk-in control module detects that the battery power supply voltage is a certain value or more.

Data Monitor Function

PID/data monitor table
