DEFLECTOR REMOVAL/INSTALLATION


id091500800400

1.  Fully open the glass panel.

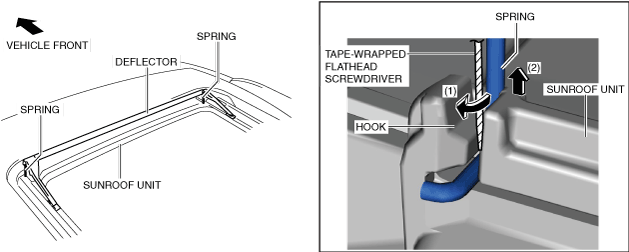

2.  Move a tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure, move the springs in the direction of arrow (2) with the hooks spread, and remove the springs from the hooks.

Caution
•  Carefully remove the spring so as not to damage the hook. If the spring is removed forcefully, the hook located at the spring installation area may be damaged.
ac8wzw00004042

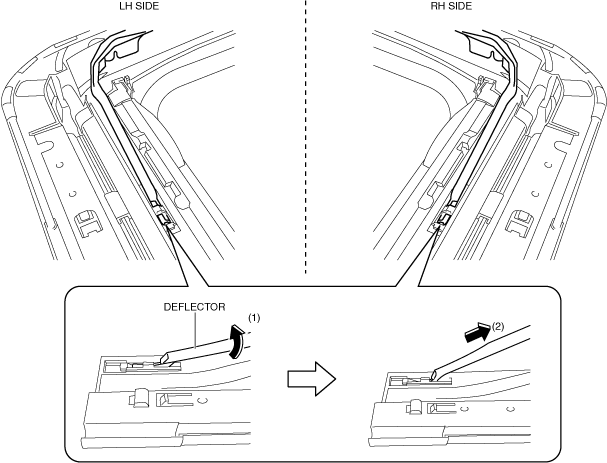

3.  Remove the deflector while lifting it up in the direction of arrow (1) shown in the figure and moving it in the direction of arrow (2).

ac8wzw00004043

4.  Install in the reverse order of removal.
