SAIL GARNISH REMOVAL/INSTALLATION

id091600451200

1.  Open the front door glass.

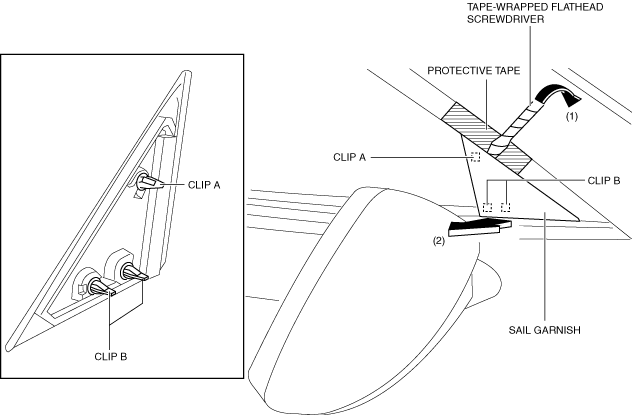

2.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00000771

3.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrow (1), and detach clip A.

4.  Move the sail garnish in the direction of arrow (2) shown in the figure and remove it while detaching clips B.

5.  Install in the reverse order of removal.
