FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

Floor Under Cover No.1 (LH)

1.  Lift up the vehicle.

2.  Remove the floor under cover No.2 (LH). (See Floor Under Cover No.2 (LH).)

3.  Remove the bolts.

ac8wzw00000831

4.  Remove the fasteners.

5.  Remove the nut.

6.  Remove floor under cover No.1 (LH).

7.  Install in the reverse order of removal.

Floor Under Cover No.1 (RH)

1.  Lift up the vehicle.

2.  Remove the floor under cover No.2 (RH). (See Floor Under Cover No.2 (RH).)

3.  Remove the bolts.

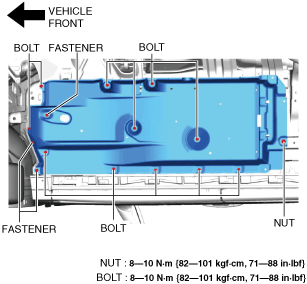

ac8wzw00000832

4.  Remove the fasteners.

5.  Remove the nut.

6.  Remove floor under cover No.1 (RH).

7.  Install in the reverse order of removal.

Floor Under Cover No.2 (LH)

1.  Lift up the vehicle.

2.  Remove the bolts.

ac8wzw00000833

3.  Remove the fastener.

4.  Remove the nuts.

5.  Remove floor under cover No.2 (LH).

6.  Install in the reverse order of removal.

Floor Under Cover No.2 (RH)

1.  Lift up the vehicle.

2.  Remove the bolts.

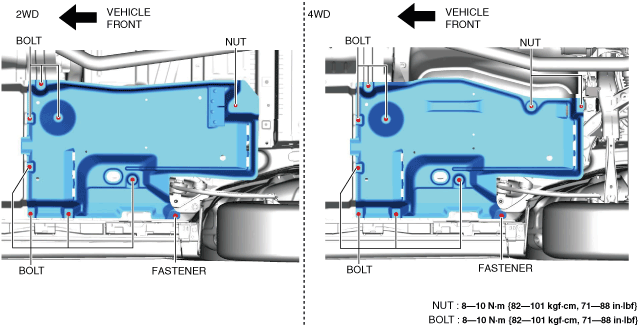

ac8wzw00000834

3.  Remove the fasteners.

4.  Remove the nut.

5.  Remove floor under cover No.2 (RH).

6.  Install in the reverse order of removal.
