FRONT UNDER COVER No.1 REMOVAL/INSTALLATION

id091600888800

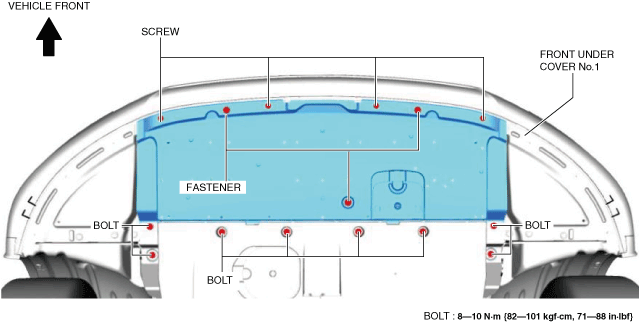

1.  Remove the bolts.

ac8wzw00000835

2.  Remove the screws.

3.  Remove the fasteners.

4.  Remove front under cover No.1.

5.  Install in the reverse order of removal.
