DEFLECTOR REMOVAL/INSTALLATION

id091600900500

Front Deflector

1.  Remove the fasteners and screw.

ac8wzw00000837

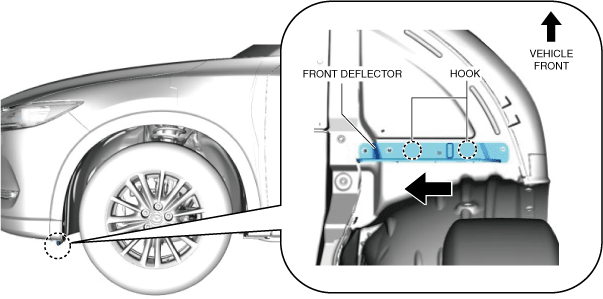

2.  Move the front deflector in the direction of the arrow shown in the figure and remove it while releasing the hooks.

ac8wzw00000838

3.  Install in the reverse order of removal.

Rear Deflector

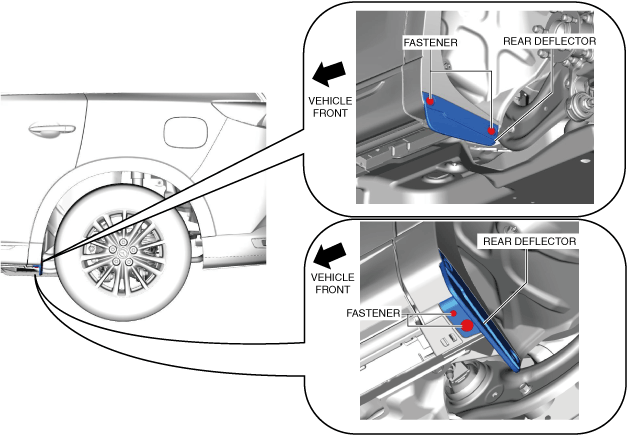

1.  Remove the fasteners.

ac8wzw00000839

2.  Remove the rear deflector.

3.  Install in the reverse order of removal.
