ORNAMENT INSTALLATION

id091600994300

TYPE A

1.  Remove any grease or dirt from the ornament installation area of the rear finisher.

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F} using a heat gun.

3.  Attach the ornament to the position shown in the figure.

2WD

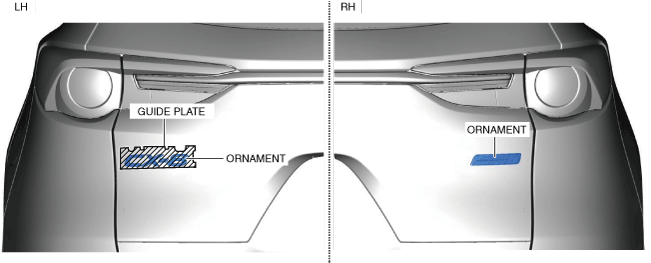

ac8wzw00000840

AWD

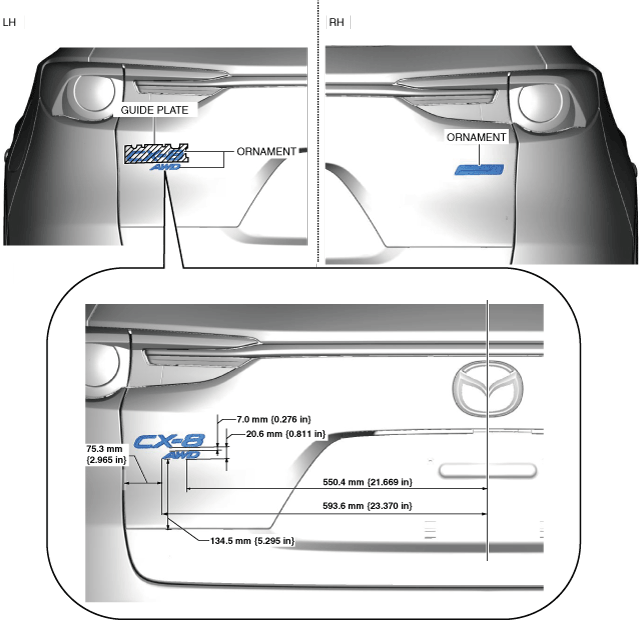

ac8wzw00000841

4.  Press the ornament using fingers with a force of 49 N {5.0 kgf, 11 lbf} or more to adhere it to the liftgate.

TYPE B

1.  Remove any grease or dirt from the ornament installation area of the rear finisher.

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F} using a heat gun.

3.  Attach the ornament to the position shown in the figure.

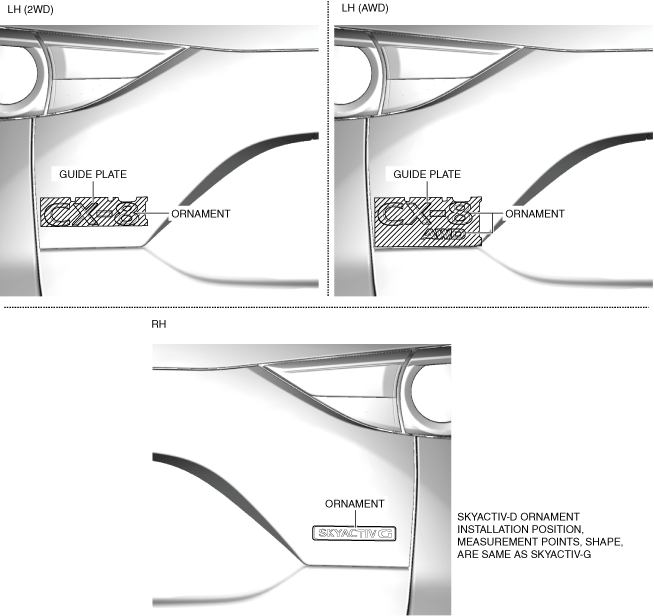

ac8wzw00004112

4.  Press the ornament using fingers with a force of 49 N {5.0 kgf, 11 lbf} or more to adhere it to the liftgate.

100YEARS Ornament

1.  Remove any grease or dirt from the ornament installation surface of the front fender.

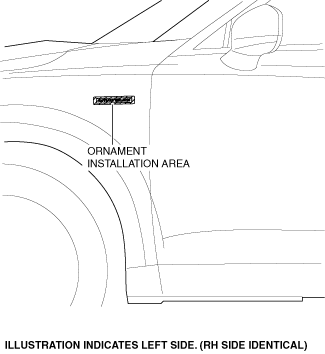

ac5uuw00011403

2.  Warm the double-sided adhesive tape on the underside of the ornament to between 15 °C {59 °F} and 40 °C {104 °F} using a heat gun.

3.  Install the ornament to the position shown in the figure.

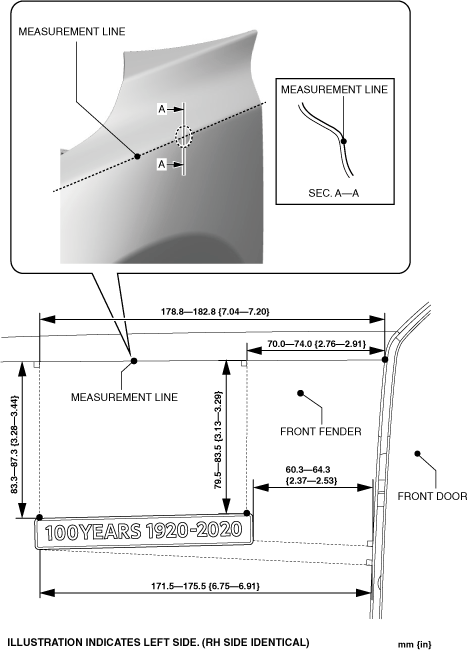

ac8wzw00004300

4.  Press the ornament with a force of 24 N {2.4 kgf, 18 lbf} or more.
