DECORATION PANEL DISASSEMBLY/ASSEMBLY

id091700600900

Note

•  The driver-side decoration panel and lower decoration panel cannot be disassembled. When replacing the driver-side decoration panel and lower decoration panel, refer to DECORATION PANEL REMOVAL/INSTALLATION. (See DECORATION PANEL REMOVAL/INSTALLATION.)

Upper Decoration Panel Disassembly/Assembly

1.  Remove the center ventilator grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

2.  Remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

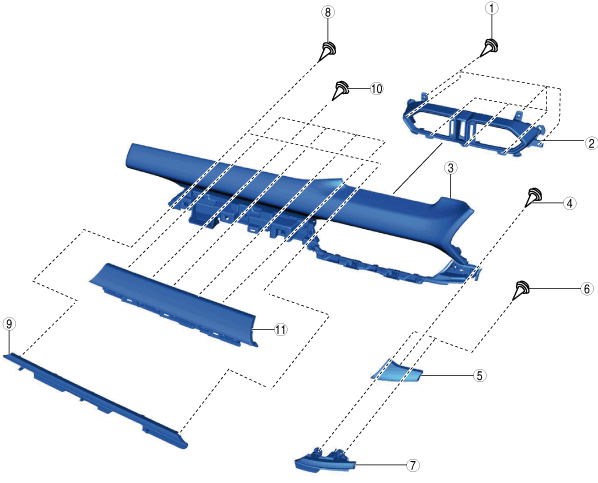

3.  Disassemble in the order shown in the figure.

ac8wzw00001580

1	Screw
2	Bezel
3	Dashboard pad
4	Screw
5	Center panel
6	Screw
7	Print plate A
8	Screw
9	Print plate B
10	Screw
11	Decoration plate

4.  Assemble in the reverse order of disassembly.
