TRUNK SIDE POCKET REMOVAL/INSTALLATION

id091700604800

Trunk Side Pocket LH

1.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

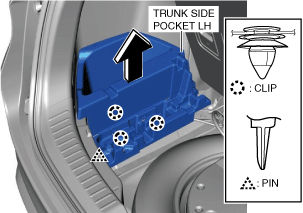

3.  Move the trunk side pocket LH in the direction of the arrow shown in the figure and remove it while detaching the clips and pin.

ac8wzw00001585

4.  Install in the reverse order of removal.

Trunk Side Pocket RH

1.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

2.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

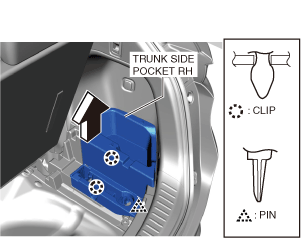

3.  Move the trunk side pocket RH in the direction of the arrow shown in the figure and remove it while detaching the clips and pin.

ac8wzw00001586

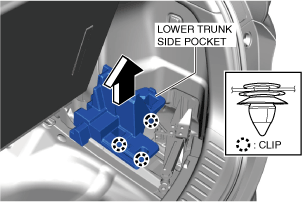

4.  Move the lower trunk side pocket in the direction of the arrow shown in the figure and remove it while detaching the clips.

ac8wzw00001587

5.  Install in the reverse order of removal.
