FOOT SUPPORT REMOVAL/INSTALLATION

id091700606100

1.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Partially peel back the floor covering.

3.  Remove the fastener.

With parking assist unit (optical)

ac8wzw00001590

Without parking assist unit (optical)

ac8wzw00001591

4.  Remove the foot support in the direction of the arrow shown in the figure.

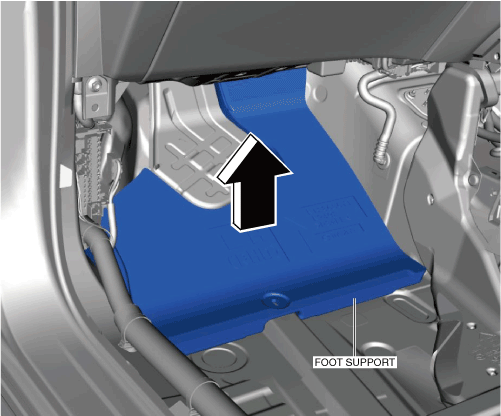

With parking assist unit (optical)

ac8wzw00001592

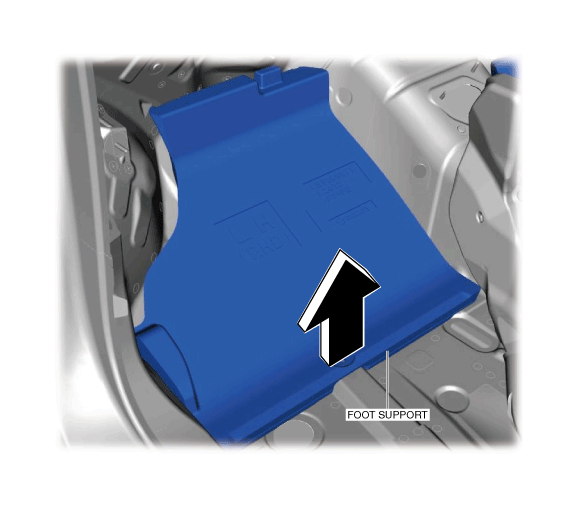

Without parking assist unit (optical)

ac8wzw00001593

5.  Install in the reverse order of removal. (See Floor Covering Installation Note.)

Floor Covering Installation Note

Caution

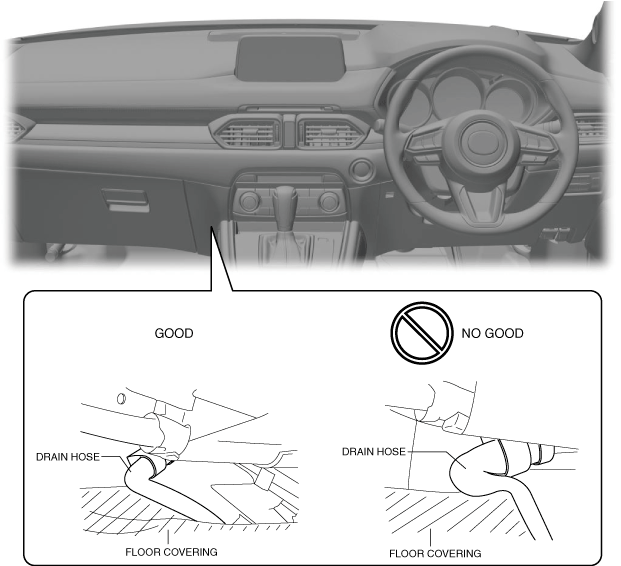

•  When installing the floor covering, the floor covering may press the A/C unit drain hose and deform it. When installing the floor covering, align the floor covering to the body to prevent deforming the A/C unit drain hose.

1.  Place the floor covering with it aligned to the body.

2.  Before installing the side wall, verify that the A/C unit drain hose is not deformed.

ac8wzw00001594
