CONSOLE SIDE PANEL REMOVAL/INSTALLATION

id091700606600

Console Side Panel (rear console)

Removal

1.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00001597

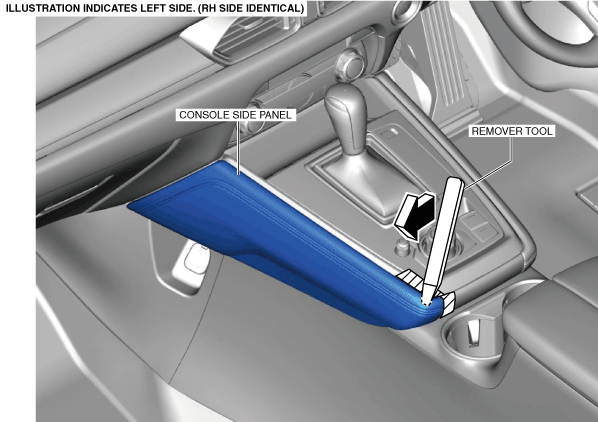

2.  Insert the remover tool into the position shown in the figure.

ac8wzw00001598

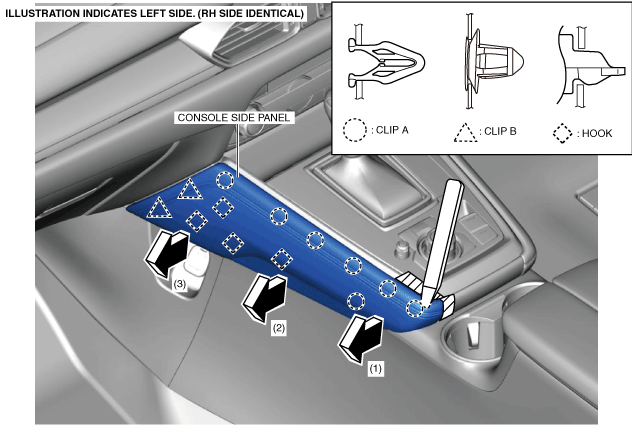

3.  Move the remover tool in the direction of the arrow shown in the figure and secure the gap for inserting a finger.

4.  Move the console side panel in the order of arrows (1), (2), and (3) shown in the figure and remove it while detaching clips A and B, and the hook.

ac8wzw00001599

Installation

1.  Press the console side panel in the order of arrows (1), (2), and (3) shown in the figure and install it while installing clips A and B, and the hook.

ac8wzw00001600

Console Side Panel (second-row seat console box) (with second-row seat console box)

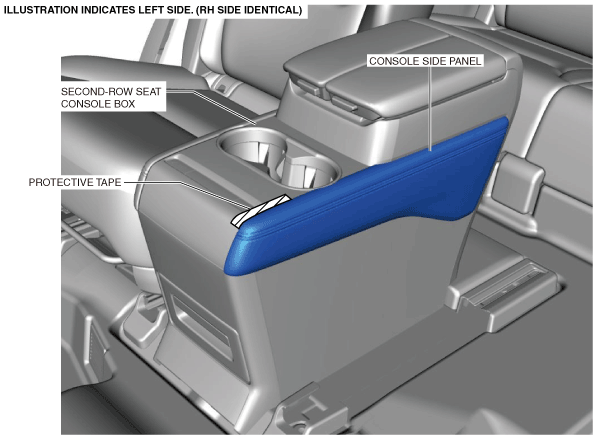

1.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00003464

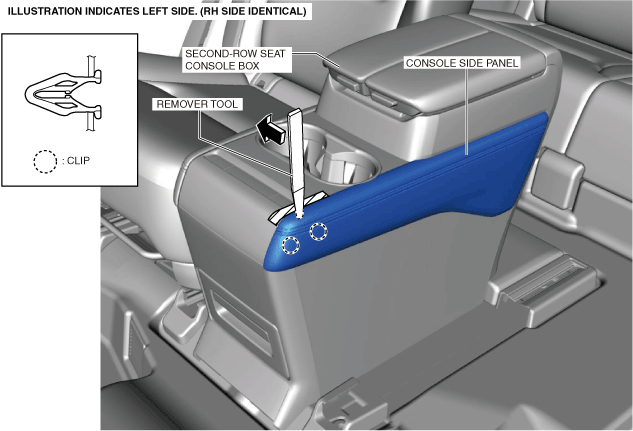

2.  Insert the remover tool into the position shown in the figure.

ac8wzw00003465

3.  Move the remover tool in the direction of the arrow shown in the figure and detach the clips from the second-row seat console box.

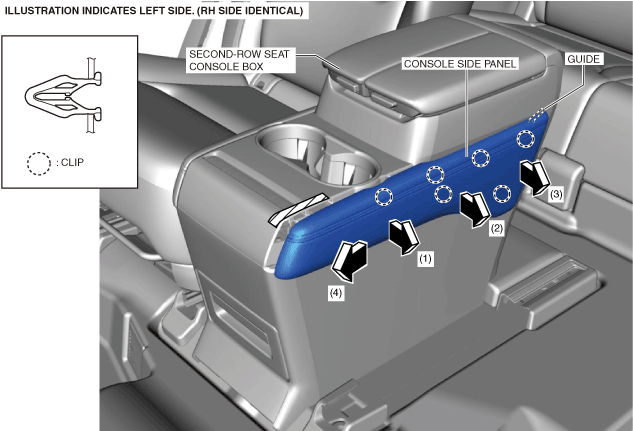

4.  Move the console side panel in the order of arrows (1), (2), and (3) shown in the figure and remove the clips from the second-row seat console box.

Caution

•  If the console side panel is pulled forcibly when removing the clips, the guide could be damaged. When pulling the console side panel in the direction of arrows (1), (2), and (3), be careful not to damage the guide.

ac8wzw00003466

5.  Move the console side panel in the direction of arrow (4) shown in the figure and remove the guide from the second-row seat console box.

6.  Remove the console side panel.

7.  Install in the reverse order of removal.
