METER HOOD DISASSEMBLY/ASSEMBLY
id091700608300

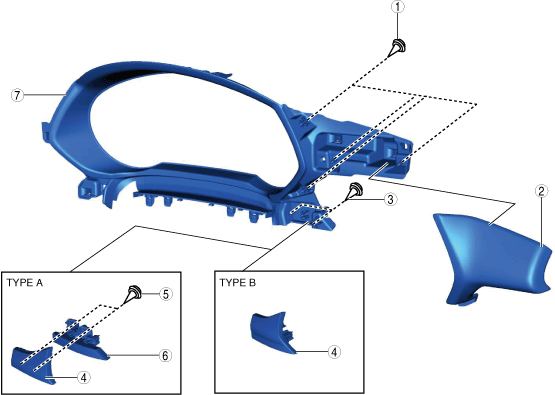

Meter Hood No.1
1. Disassemble in the order shown in the figure.
ac8wzw00001610
|
|
1
|
Screw
|
|
2
|
Cover No. 1
|
|
3
|
Screw
|
|
4
|
Cover No.2
|
|
5
|
Screw (type A only)
|
|
6
|
Partition plate (type A only)
|
|
7
|
Meter hood No.1
|
2. Assemble in the reverse order of disassembly.

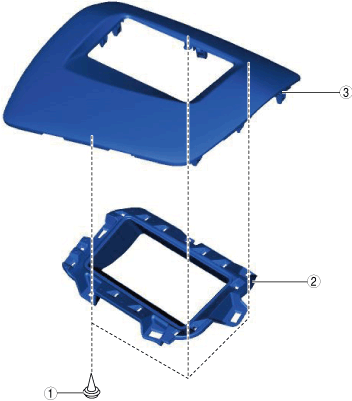

Meter Hood No.2 (With Active Driving Display)
1. Disassemble in the order shown in the figure.
ac5jjw00010063
|
|
1
|
Screw
|
|
2
|
Hole cover
|
|
3
|
Meter hood No.2
|
2. Assemble in the reverse order of disassembly.
