SHIFT PANEL DISASSEMBLY/ASSEMBLY

id091700608400

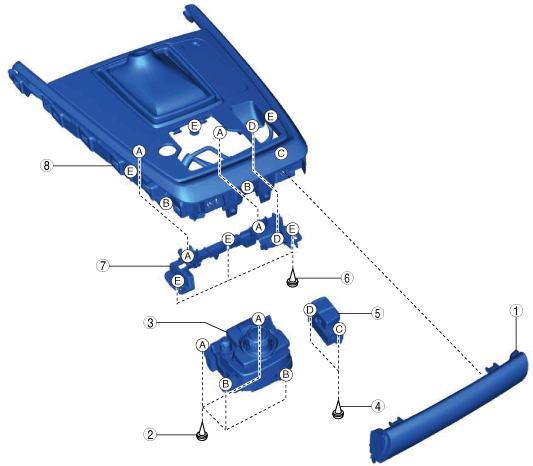

1.  Disassemble in the order shown in the figure.

ac8jjw00000871

1	Partition plate
2	Screw
3	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION.)
4	Screw
5	Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)
6	Screw
7	Plate
8	Shift panel

2.  Assemble in the reverse order of disassembly.
