REAR SCUFF PLATE REMOVAL/INSTALLATION

id091700801500

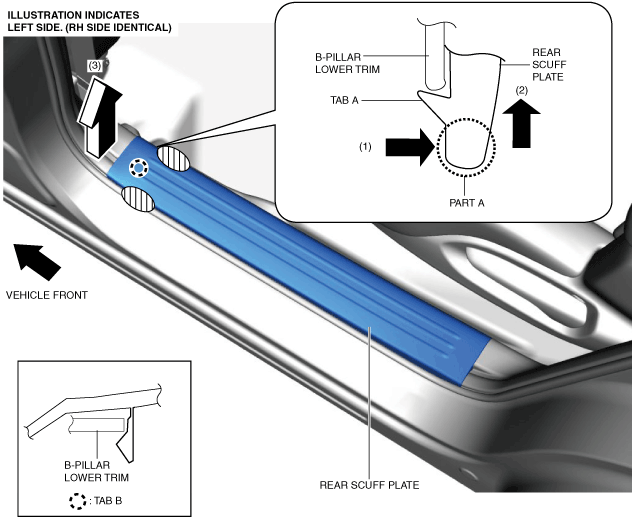

1.  Hold part A shown in the figure, open the rear scuff plate in the direction of arrow (1), and then detach tab A of the rear scuff plate from the B-pillar lower trim while moving it in the direction of arrow (2).

ac8wzw00001657

2.  Hold the shaded areas shown in the figure and detach tab B of the rear scuff plate from the B-pillar lower trim while moving the rear scuff plate in the direction of arrow (3).

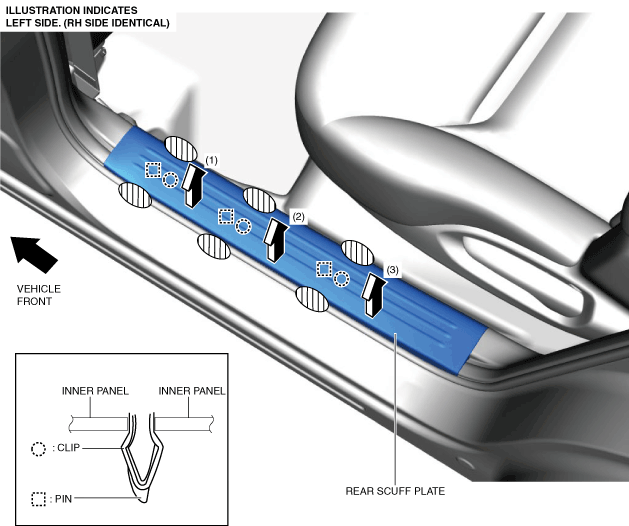

3.  Hold the shaded areas shown in the figure, move the rear scuff plate in the order of arrows (1), (2), and (3), and then pull out the pins while removing the clips from the inner panel.

ac8wzw00001658

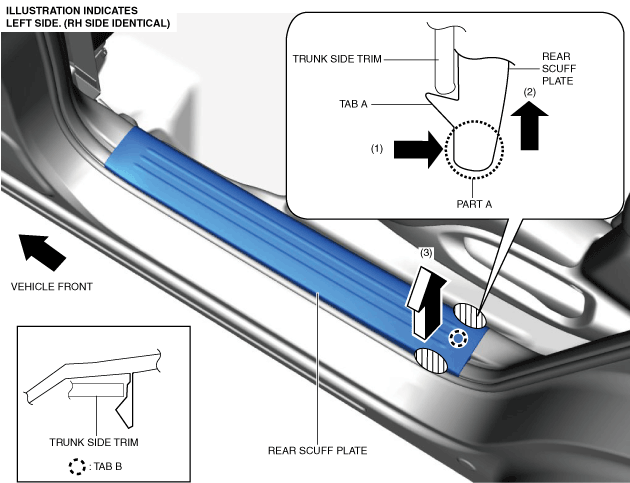

4.  Hold part A shown in the figure, open the rear scuff plate in the direction of arrow (1), and then detach tab A of the rear scuff plate from the trunk side trim while moving it in the direction of arrow (2).

ac8wzw00001659

5.  Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of arrow (3), and then detach tab B of the rear scuff plate from the trunk side trim.

6.  Remove the rear scuff plate.

7.  Install in the reverse order of removal.
