ASSIST HANDLE REMOVAL/INSTALLATION

id091700801800

Removal

1.  Insert a tape-wrapped flathead screwdriver into the notch and remove the assist handle cover.

ac8wzw00001685

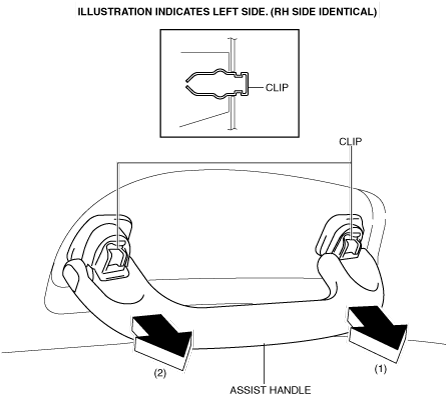

2.  Pull the assist handle in the order of arrows (1) and (2) shown in the figure and remove it while detaching the clips.

Note

•  Remove the assist handle by shaking it up and down.

ac8wzw00001686

Installation

1.  Push the assist handle in the direction of the arrows shown in the figure and insert it into the assist handle brackets.

ac8wzw00001687

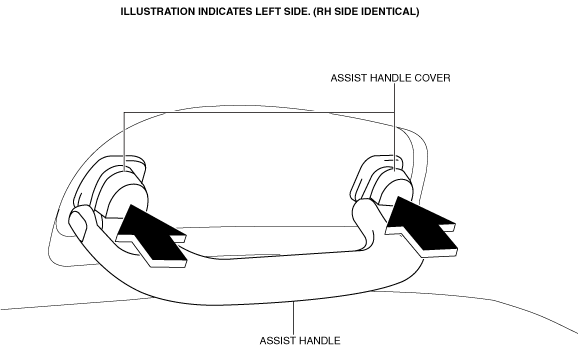

2.  Push the assist handle covers in the direction of the arrows shown in the figure to install the assist handle.

ac8wzw00001688
