REAR DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804300

Vehicles With Rear Door Sunshade

1.  Disassemble in the order shown in the figure.

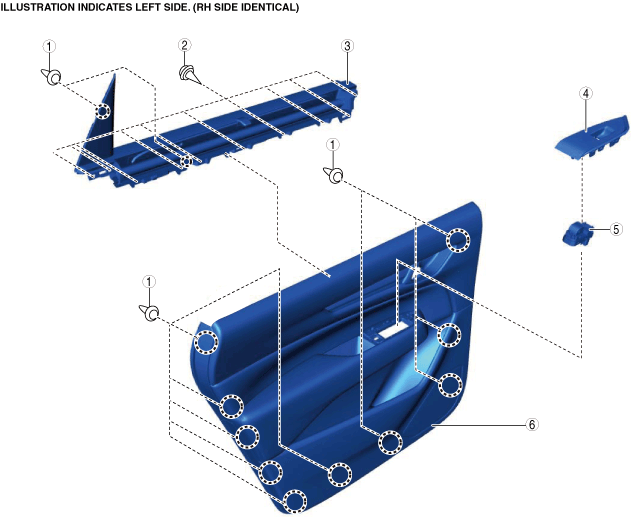

ac8wzw00001763

1	Fastener
2	Screw
3	Rear door sunshade (See REAR DOOR SUNSHADE REMOVAL/INSTALLATION.)
4	Power window subswitch cover (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
5	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
6	Rear door trim

2.  Assemble in the reverse order of disassembly.

Vehicles Without Rear Door Sunshade

1.  Disassemble in the order shown in the figure.

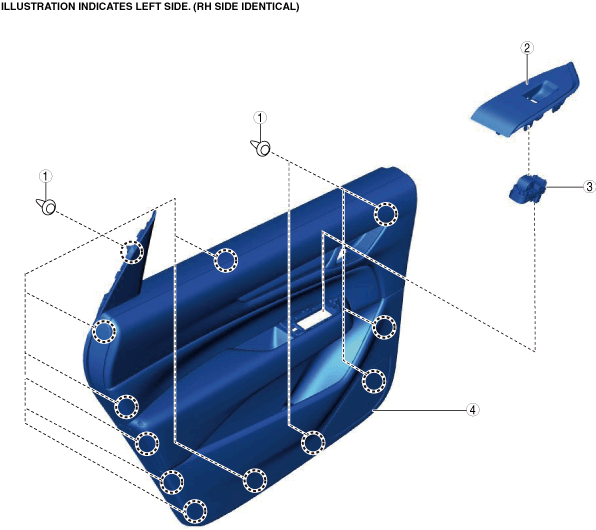

ac8wzw00001764

1	Fastener
2	Power window subswitch cover (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
4	Rear door trim

2.  Assemble in the reverse order of disassembly.
