LIGHTING SYSTEMS

id091800010000


Outline

•  Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
•  The following systems have been adopted to the headlights.
―  Auto light system
―  Headlight auto leveling system
―  Running light system (with running light system)
―  Coming home light
―  Leaving home light
•  Front fog lights have been adopted. (With front fog lights)
•  Rear fog light has been adopted. (With rear fog light)
•  Emergency signal system (ESS) has been adopted.
•  A room light control system has been adopted in which illumination time and illumination level of the interior lights change.

Specification

—: Not applicable

Item

Bulb specification

(UNECE (SAE))

Spec (W) x quantity
Exterior
Headlight HI/LO (without adaptive LED headlights)
LED*
48 W or equivalent/43 W or equivalent
Headlight HI/LO (with adaptive LED headlights)
LED*
70.7 W or equivalent/43 W or equivalent
LED for side illumination (with adaptive LED headlights)
LED*
9 W or equivalent
Running light (with running light system)
LED*
16 W or equivalent
Parking light
LED*
8.8 W or equivalent
Front turn light bulb
WY21W (7443NA)
21 x 2
Front fog light (With front fog light)
LED*
8 W or equivalent
Rear fog light (with rear fog light)
LED*
21 x 1
Side turn light
LED*
3 W or equivalent
Rear turn light bulb
WY21W (22.3CP)
21 x 2
Rear combination light
Rear turn light bulb
WY21W
(22.3CP)
21 x 2
Brake light/taillight
LED*1
8.2/5.2 x 2
Liftgate light
Back-up light bulb
W16W (921)
16 x 2
Taillight
LED*1
1.5 x 2
High-mount brake light
LED*
1.82 W or equivalent
License plate light bulb
W5W (4CP)
5 x 2
Interior
Front map light (bulb type)
— (—)
8 x 2
Front map light (LED type)
LED
1 x 2
Center map light (bulb type)
— (—)
8 x 2
Center map light (LED type)
LED
1 x 2
Rear map light (bulb type)
— (—)
10 x 1
Rear map light (LED type)
LED
1 x 1
Cargo compartment light bulb
— (—)
8 x 1
Vanity mirror illumination bulb
— (—)
2 x 2

*  :The LED for each light cannot be replaced separately. If there is any malfunction in the LED, replace each light as a single unit.

Structure/Construction


System structure

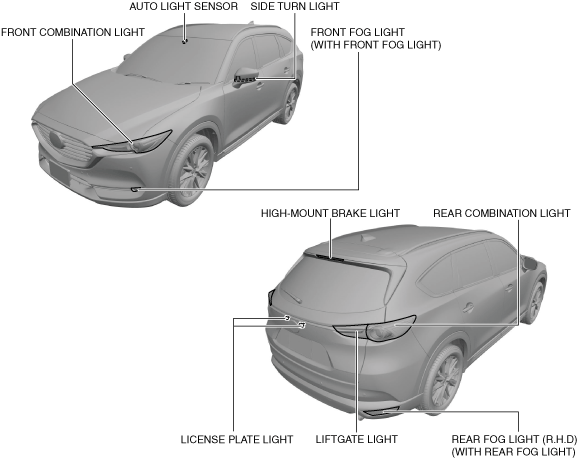

Exterior

ac8wzn00000672

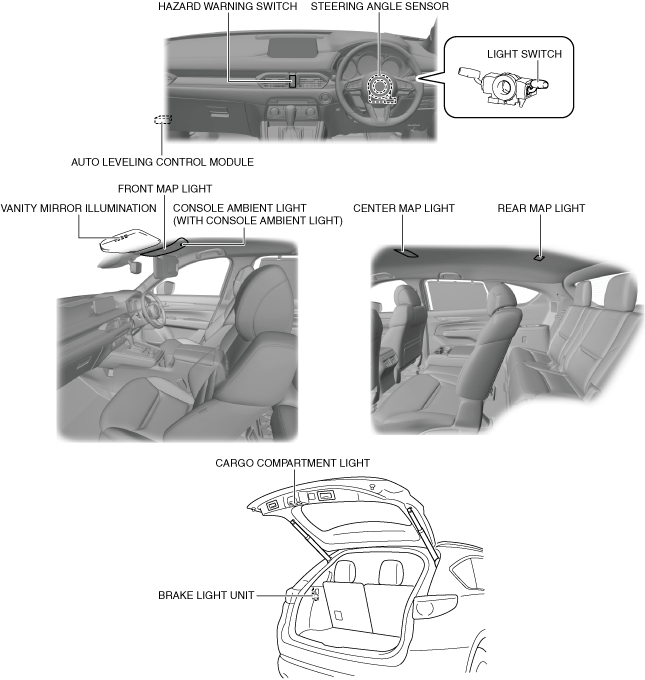

Interior

ac8wzn00000673
