RUNNING LIGHT SYSTEM

id091800011700


Outline

•  The running light system automatically turns on the running lights while the vehicle is driven.

Function

•  The front body control module (FBCM) controls the running light system according to the vehicle conditions.

—: Not applicable

Vehicle speed

Ignition switch

Parking brake

Selector lever position

Light switch position

Dimmer switch position

Auto light system

Running light
3 km/h {2 mph} or more
ON (engine on)
Release
Except P position
OFF
HI
—
On
LO
On
FLASH-TO-PASS
On
AUTO
HI
Off
On
On
Off
LO
Off
On
On
Off
FLASH-TO-PASS
Off
On
On
Off
TNS (parking lights)
HI
—
Off
LO
Off
FLASH-TO-PASS
Off
HEAD
HI
—
Off
LO
Off
FLASH-TO-PASS
Off


Personalization features

•  The running light system can be switched between operable and inoperable (initial setting is [On] (running light illumination)). For details on the personalization features, refer to the [LIGHTING SYSTEM PERSONALIZATION]. (See LIGHTING SYSTEM PERSONALIZATION.)


Structure/Construction

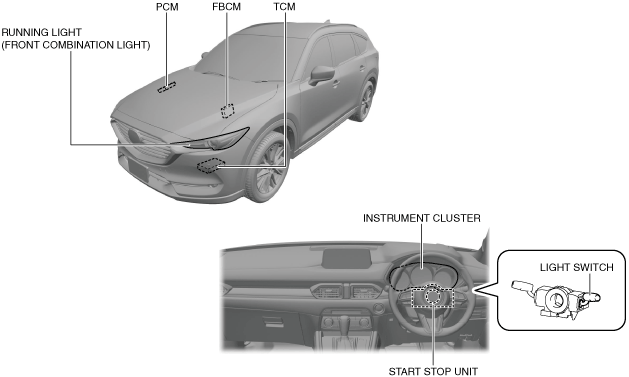

System structure

ac8wzn00000695

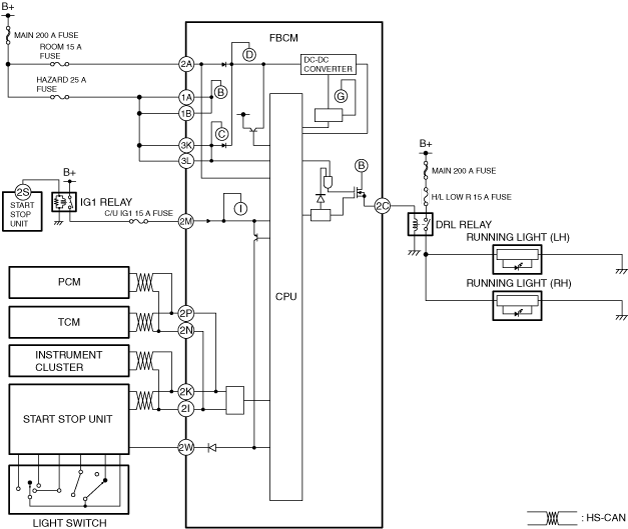

System wiring diagram

ac8wzn00000696


Operation


Operation conditions

•  When the following operation conditions are met, the front body control module (FBCM) activates the running light system.
―  Vehicle speed: 3 km/h {2 mph} or more (vehicle speed signal)
―  Ignition switched ON (engine on) (ignition switch position signal)
―  Parking brake: Released (parking brake switch signal)
―  Selector lever position: Except P position (selector lever position signal)
―  Light switch position: OFF, AUTO (auto light system not operated), or TNS (parking lights) (light switch signal)

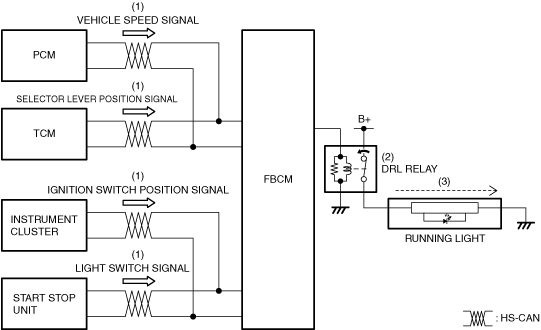

Operation

1.  When the operation conditions are met (1), the front body control module (FBCM) turns the DRL relay on (2).

2.  When the DRL relay turns on, the running light is illuminated (3).

ac8wzn00000697
