REAR COMBINATION LIGHT

id091800011800

Purpose

―  Rear turn light: Signals a left or right turn of the vehicle.

―  Brake light: Signals a vehicle deceleration or stop.

―  Taillight: Signals the presence of the vehicle to vehicles/people at the rear during nighttime.

Function

Operation switch	Related light	Operation status
Turn switch	Rear turn light	Flash
Hazard warning switch
Brake switch	Brake light	On
Light switch (TNS (parking lights))	Taillight	On

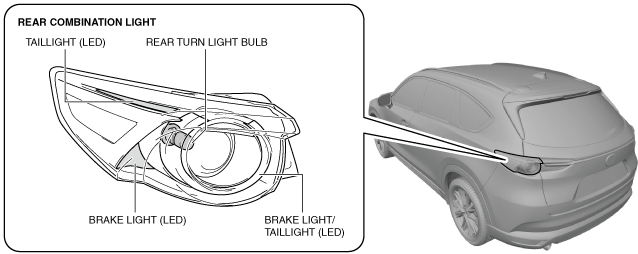

Structure/Construction

―  Brake light (LED)

―  Taillight (LED)

Note

•  Fogging or condensation on the inside of the rear combination lights may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights and it does not affect the light performance.

•  Fogging or condensation occurring as a natural phenomenon will dissipate when the temperature inside the rear combination lights rises after the rear turn lights are turned on and a period of time has elapsed.

ac8wzn00000698

Operation

Rear turn light

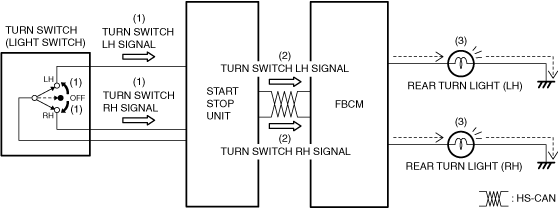

Turn light system

1.  When the turn switch is moved to the LH or RH position, the start stop unit detects (1) a turn switch LH signal or turn switch RH signal.

2.  The start stop unit sends (2) the turn switch LH signal or the turn switch RH signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the turn switch LH signal or the turn switch RH signal with the ignition switched ON (engine off or on), it flashes (3) the rear turn light (LH) or rear turn light (RH).

ac8wzn00000699

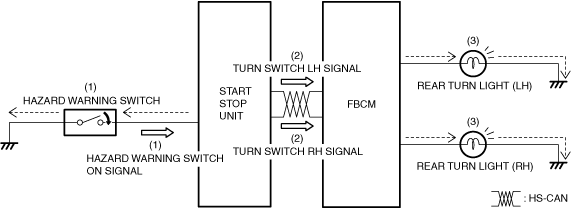

Hazard warning system

1.  When the hazard warning switch is on, the start stop unit detects (1) a hazard warning switch on signal.

2.  The start stop unit sends (2) the hazard warning switch on signal to the front body control module (FBCM) via CAN communication as a turn switch LH signal and turn switch RH signal.

3.  When the front body control module (FBCM) receives the turn switch LH signal and the turn switch RH signal, it flashes (3) the rear turn light (LH) and rear turn light (RH).

ac5uun00002526

Brake light

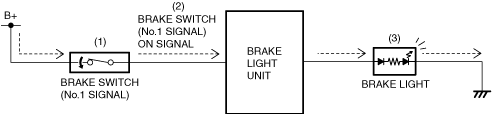

Operation due to brake pedal operation

1.  When the brake pedal is depressed, the brake switch (No.1 signal) turns on (1).

2.  When the brake switch (No.1 signal) turns on, the brake light unit detects (2) a brake switch (No.1 signal) on signal.

3.  When the brake light unit detects a brake switch (No.1 signal) on signal, it turns on (3) the brake light.

ac8wzn00000700

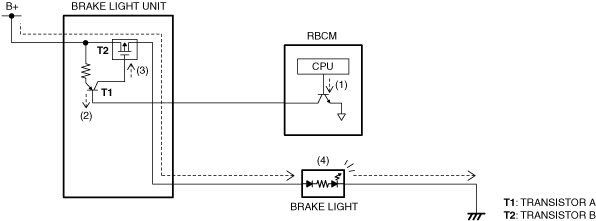

Operation due to operation request signal from rear body control module (RBCM)

1.  When all the operation conditions are met, the rear body control module (RBCM) turns the transistor on (1) in the rear body control module (RBCM).

Note

•  For the operation conditions, refer to the followings:

―  Advanced smart city brake support (advanced SCBS) (See ADVANCED SMART CITY BRAKE SUPPORT (ADVANCED SCBS).)

―  Smart city brake support [reverse] (SCBS R) (See SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R).)

―  Smart brake support (SBS) (See SMART BRAKE SUPPORT (SBS).)

2.  When the transistor in the rear body control module (RBCM) turns on, the transistor A in the brake light unit turns on (2).

3.  When the transistor A in the brake light unit turns on, the transistor B in the brake light unit turns on (3).

4.  When the transistor B in the brake light unit turns on, the brake light turns on (4).

ac8wzn00000701

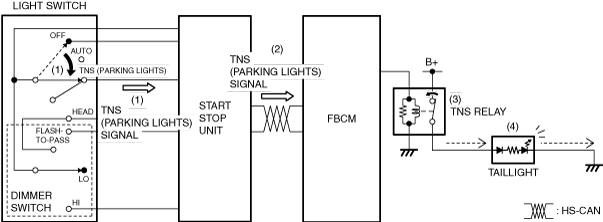

Taillight

1.  When the light switch is moved to the TNS (parking lights) or HEAD position, the start stop unit detects (1) a TNS (parking lights) signal.

2.  The start stop unit sends (2) the TNS (parking lights) signal to the front body control module (FBCM) via CAN communication.

3.  When the front body control module (FBCM) receives the TNS (parking lights) signal, it turns (3) the TNS relay on.

4.  When the TNS relay turns on, the taillight is illuminated (4).

ac8wzn00000702
