LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE
id091800112900
Auto Light System
• There are two methods for personalizing the auto light system: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
-
Using center display
-
Turn Light System
• There are two methods for personalizing the turn light system: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
-
Using center display
-
Coming Home Light
• There are two methods for personalizing the coming home light: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
-
Using center display
-
Leaving Home Light
• There are two methods for personalizing the leaving home light: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
-
Using center display
-
Room Light Control System
• There are two methods for personalizing the room light control system: One using the M-MDS and the other using the center display (with center display).
Using M-MDS
-
Using center display
-
Running Light System
Using light switch
|
Function
|
Initial setting
|
Setting contents
|
Control module
|
|
The running light system function can be set.
|
On (running light illumination)
|
Off (running light non-illumination)/On (running light illumination)
|
Front body control module (FBCM)
|
-

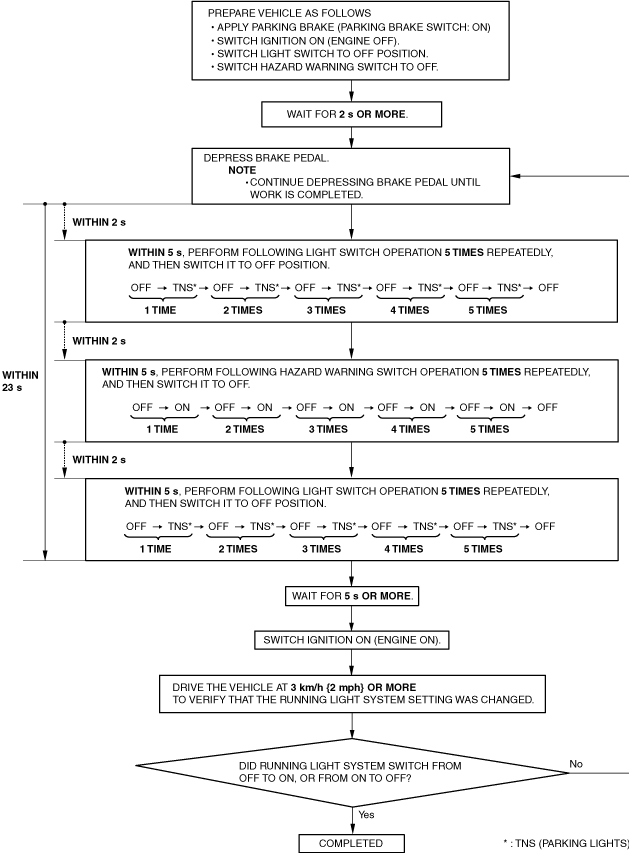

• Perform the following procedure to change the running light illumination/non-illumination setting.
-
Note
-
• Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
