FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY

id091800816000

1.  Disassemble in the order shown in the figure.

With parking light (bulb type)

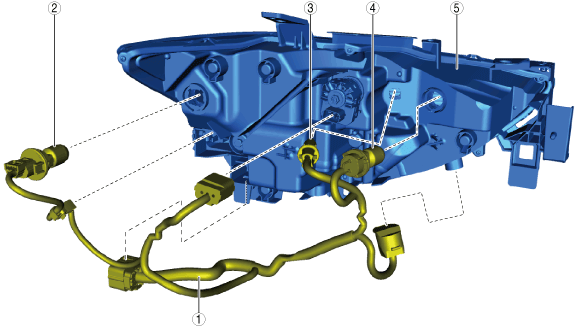

ac5wzw00008727

1	Short cord (See Short Cord Removal Note.)
2	Running light bulb (with running light system) (See RUNNING LIGHT BULB REMOVAL/INSTALLATION.)
3	Parking light bulb (See PARKING LIGHT BULB REMOVAL/INSTALLATION.)
4	Front turn light bulb (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
5	Front combination light

With parking light (LED type) and without adaptive LED headlights

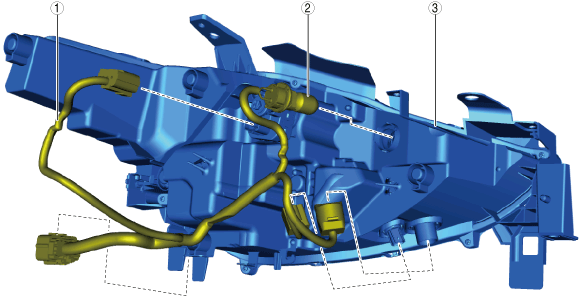

ac5wzw00008728

1	Short cord (See Short Cord Removal Note.)
2	Front turn light bulb (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
3	Front combination light

With adaptive LED headlights

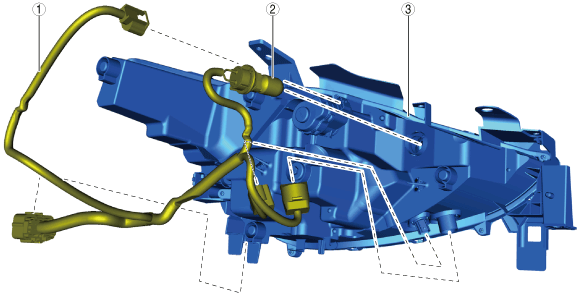

ac5jjw00008648

1	Short cord (See Short Cord Removal Note.)
2	Front turn light bulb (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION.)
3	Front combination light

2.  Assemble in the reverse order of disassembly.

Short Cord Removal Note

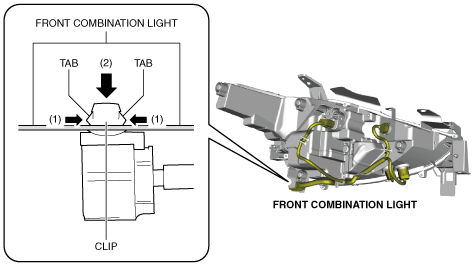

1.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the front combination light.

ac5wzw00008729

2.  Remove the short cord.
