WIPER/WASHER


id091900002400


Outline

•  The following systems have been adopted to the wiper and washer.
―  Windshield wiper and washer system
―  Rear wiper and washer system
―  Auto wiper system

Specification

•  A windshield wiper and washer system with continuous (low/high), auto-stop, one-touch wiper, intermittent wiper (when the auto wiper system is set to [Off (Intermittent)] or [Off]), and a windshield washer and synchronized washer have been adopted.
―  CAN communication has been adopted to the windshield wiper and washer system.
―  A windshield washer nozzle has been adopted in which the area where the washer fluid is sprayed can be adjusted.
•  A rear wiper and washer system with continuous, auto-stop, and intermittent wiper, and synchronized washer have been adopted.
―  CAN communication has been adopted to the rear wiper and washer system.
―  Rear washer nozzle has been adopted in which the area where the washer fluid is sprayed can be adjusted.
•  Auto wiper system has been adopted which enables fully automatic windshield wiper operation.
―  CAN communication has been adopted to the auto wiper system.
―  A rain sensor integrated with the lens has been adopted which aggregates infrared light to detect the amount of rainfall.
―  A personalization feature has been adopted to the auto wiper system.
•  Washer tank capacity: 2.2 L {2.3 US qt, 1.9 Imp qt}

Structure/Construction


System structure

Exterior

ac8wzn00000781

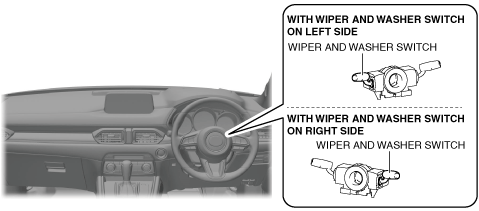

Interior

ac8wzn00000782
