USB POWER OUTLET


id092100112000


Purpose

•  By connecting a USB device to the USB power outlet, power is supplied to enable in-vehicle battery charging.

Function

•  The USB power outlet supplies power to USB devices rated at 10.5 W (DC5 V, 2.1 A) or less maximum power consumption.

Structure/Construction/Operation

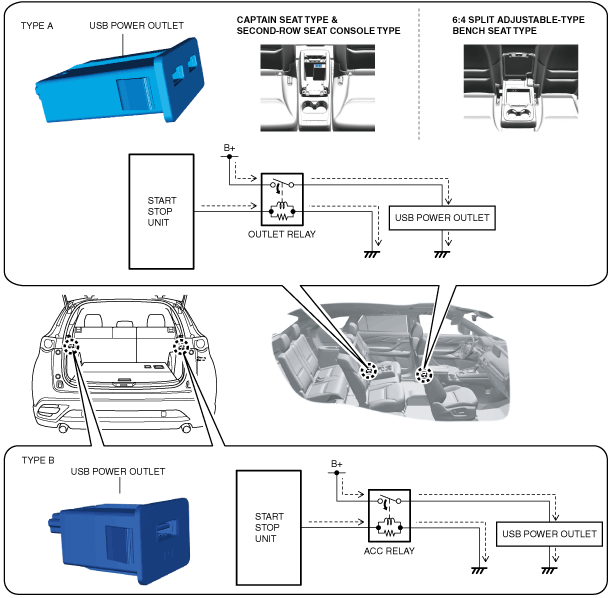

•  The USB power outlet located as shown in the figure.
•  When a USB device is connected to the USB power outlet with the ignition switched to ACC or ON (engine off or on), power is supplied to the USB device from the battery.
ac8wzn00001225

Fail-safe

•  Not applicable
