ODOMETER/TRIPMETER

id092200032900

Purpose

Functions

Odometer calculation function

•  The instrument cluster calculates the total traveled distance based on the traveled distance signal from the PCM and the stored traveled distance, and displays it.

•  The total traveled distance which can be displayed is from 0 to 999999.

Tripmeter A/B calculation function

•  The instrument cluster calculates the traveled distance based on the traveled distance signal from the PCM and the traveled distance from when the tripmeter is reset, and displays it.

•  There are A and B tripmeters and the display for each can be switched with each press of the tripmeter switch (TYPE C)/INFO button (TYPE A, TYPE B).

•  If the INFO button is continuously pressed for approx. 1.5 s or more, the tripmeter traveled distance is reset (0). (TYPE A, TYPE B)

•  The traveled distance which can be displayed is from 0 to 1999. After 1999, it returns to 0. (TYPE A, TYPE B)

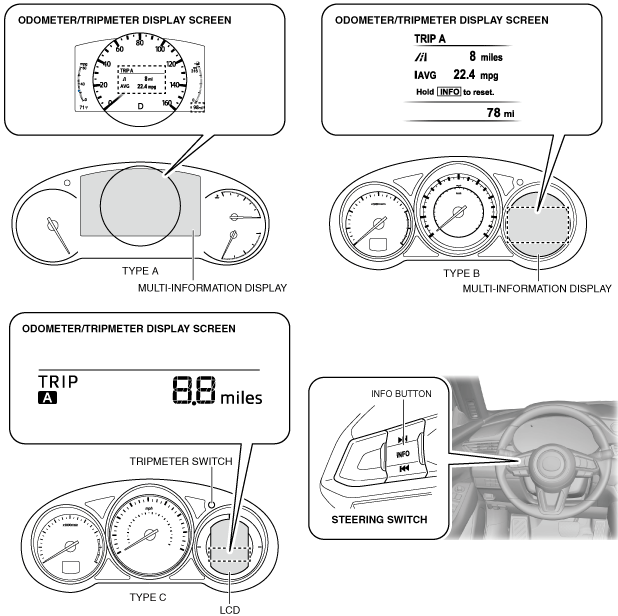

Structure/Construction

•  The odometer/tripmeter is displayed in the LCD (TYPE C)/multi-information display (TYPE A, TYPE B) of the instrument cluster.

am6xun00004316

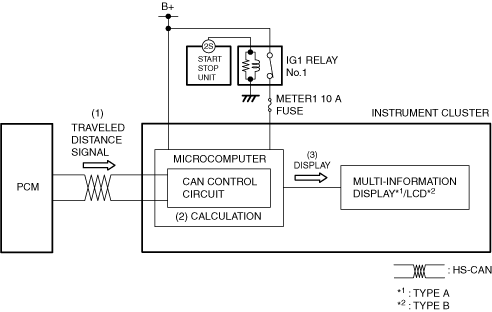

Operation

1.  When the instrument cluster receives (1) the traveled distance signal from the PCM while the ignition is switched ON (engine on), it adds up (2) the total traveled distance (odometer) data which is recorded, traveled distance over a specific interval (tripmeter), and the traveled distance.

2.  The instrument cluster displays (3) the calculated travel distance in the LCD (without multi-information display)/multi-information display (with multi-information display) of the instrument cluster.

ac8wzn00001000

Odometer/tripmeter switching operation

TYPE A, TYPE B

•  For details on the odometer/tripmeter switching operation, refer to [MULTI-INFORMATION DISPLAY]. (See MULTI-INFORMATION DISPLAY.)

Fail-safe
