HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)
id092200042800
Purpose
High engine coolant temperature warning light (red)
-
• The high engine coolant temperature warning light (red) warns the driver that the engine coolant temperature is high and that there is the danger of overheating.
Low engine coolant temperature indicator light (blue)
-
• The low engine coolant temperature indicator light (blue) notifies the driver that the engine coolant temperature is low.
Functions
High engine coolant temperature warning light (red)
-
• The high engine coolant temperature warning light (red) flashes at 0.5 s intervals when the engine coolant temperature exceeds the set value, and turns on if the temperature increases further.

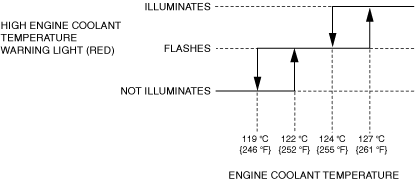

• The flashing/illumination condition of the high engine coolant temperature warning light (red) is as shown in the figure.
Low engine coolant temperature indicator light (blue)
-
• The low engine coolant temperature indicator light (blue) turns on when the engine coolant temperature is low.
• Illumination condition of the low engine coolant temperature indicator light (blue) is as shown in the figure.
Structure/Construction

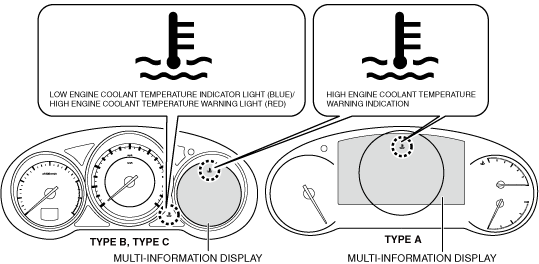

• The high engine coolant temperature warning light (red)/low engine coolant temperature indicator light (blue) are built into the instrument cluster.
• The high engine coolant temperature warning indication is displayed in the multi-information display.
• A warning message in the center display is displayed when the high engine coolant temperature warning light is turned on or flashed. For the message content and verification method, refer to the [CENTER DISPLAY]. (See
CENTER DISPLAY.)
• A warning message is displayed in the multi-information display simultaneously with the high engine coolant temperature warning indication. For the message content and verification method, refer to the [MULTI-INFORMATION DISPLAY]. (See
MULTI-INFORMATION DISPLAY.)
• For vehicles with active driving display, a warning message in the active driving display is displayed when the high engine coolant temperature warning light/the high engine coolant temperature warning indication is turned on or flashed/displayed. For the message content and verification method, refer to the [ACTIVE DRIVING DISPLAY]. (See
ACTIVE DRIVING DISPLAY.)
Operation
High engine coolant temperature warning light (red)
1. When the instrument cluster receives (1) the engine coolant temperature signal from the PCM via CAN communication while the ignition is switched ON (engine on), it turns the transistor on (2) intermittently for flashing or continuously for illumination.
2. The high engine coolant temperature warning light (red) flashes (3) when the transistor is turned on intermittently, and it turns on (3) when the transistor is turned on continuously.

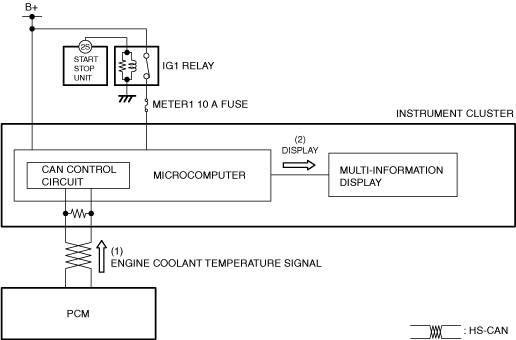

High engine coolant temperature warning indication
1. When the instrument cluster receives (1) an engine coolant temperature signal from the PCM via CAN communication while the ignition is switched ON (engine on), it displays (2) the high engine coolant temperature warning indication in the multi-information display.

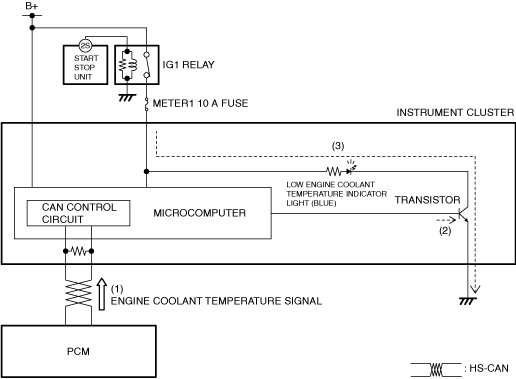

Low engine coolant temperature indicator light (blue)
1. When the instrument cluster receives (1) an engine coolant temperature signal from the PCM via CAN communication while the ignition is switched ON (engine on), it turns on (2) the transistor.
2. When the transistor turns on, a ground circuit with the low engine coolant temperature indicator light (blue) is established and the low engine coolant temperature indicator light (blue) turns on (3).
Fail-safe
• Not applicable
