DOOR-AJAR WARNING INDICATION/LIFTGATE-AJAR WARNING INDICATION

id092200043100

Purpose

• The door-ajar warning indication notifies the driver that any door is open.

• The liftgate-ajar warning indication notifies the driver that the liftgate is open.

Function

• When the instrument cluster receives any of the following signals sent from the rear body control module (RBCM) via the CAN signal, the door-ajar warning indication/liftgate-ajar warning indication is displayed.

― Door latch switch ON signal (door open)

― Liftgate latch switch ON signal (liftgate open)

Structure/Construction

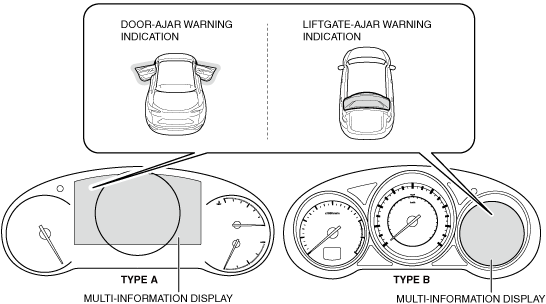

• The door-ajar warning indication/liftgate-ajar warning indication is displayed in the multi-information display of the instrument cluster.

ac9wzn00001982

Operation

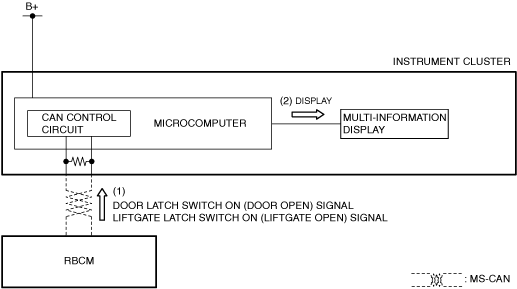

1. The instrument cluster receives (1) the door latch switch ON signal or liftgate latch switch ON signal from the rear body control module (RBCM).

2. When any received signal indicates that door/liftgate is open, the instrument cluster displays (2) the door-ajar warning indication/liftgate-ajar warning indication in the multi-information display of the instrument cluster.

ac9uun00001720

Fail-safe

• Not applicable
